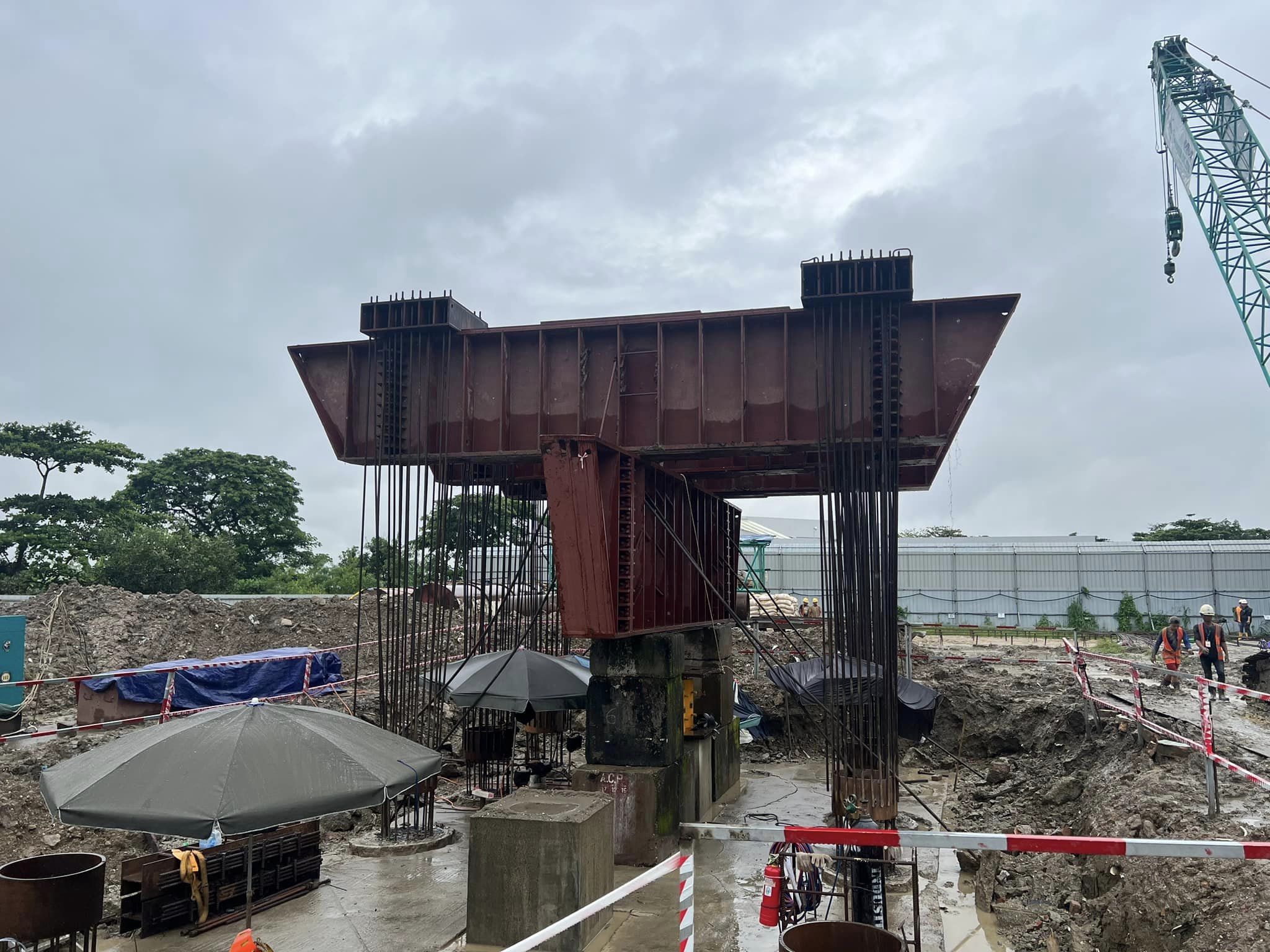

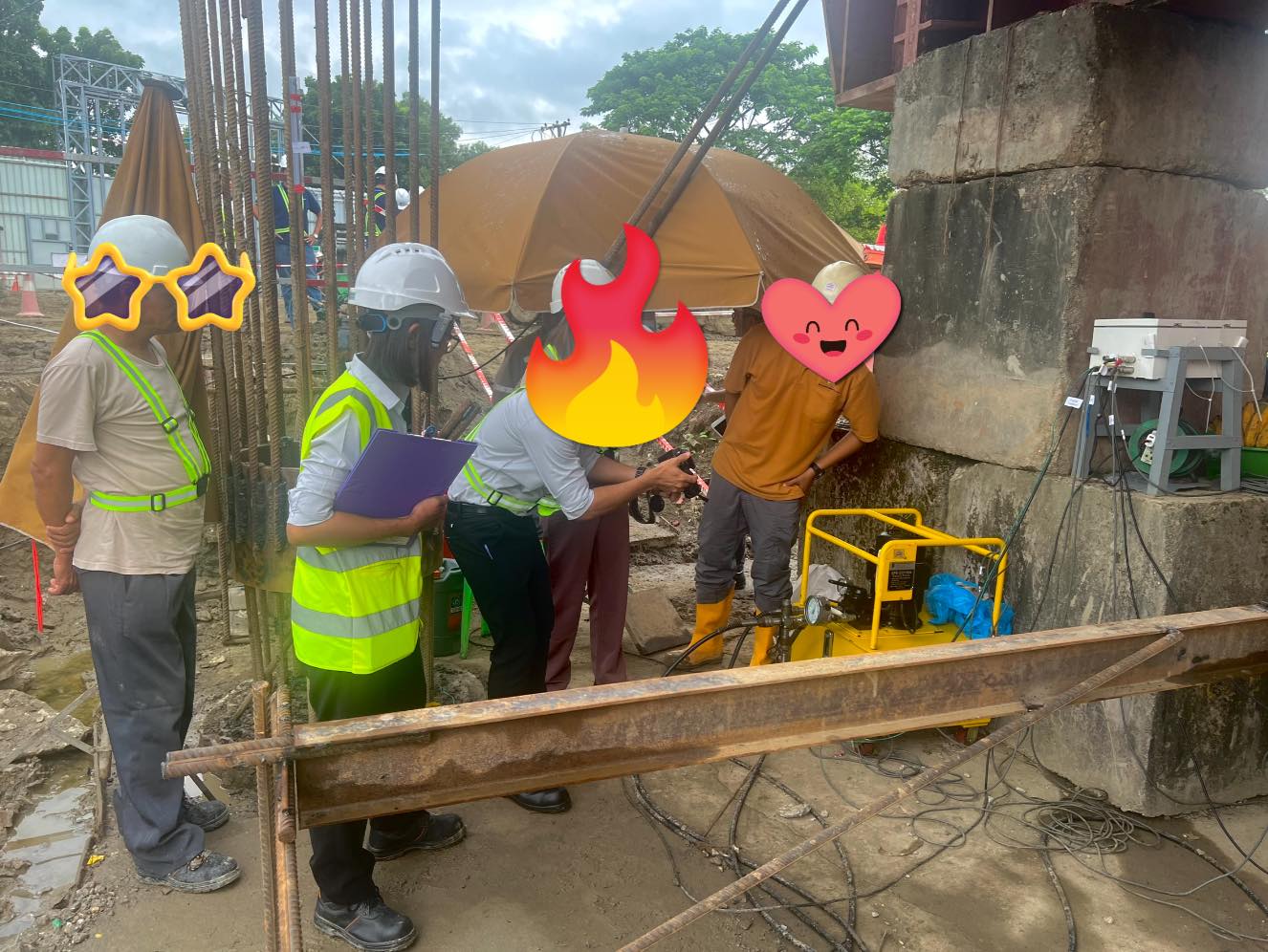

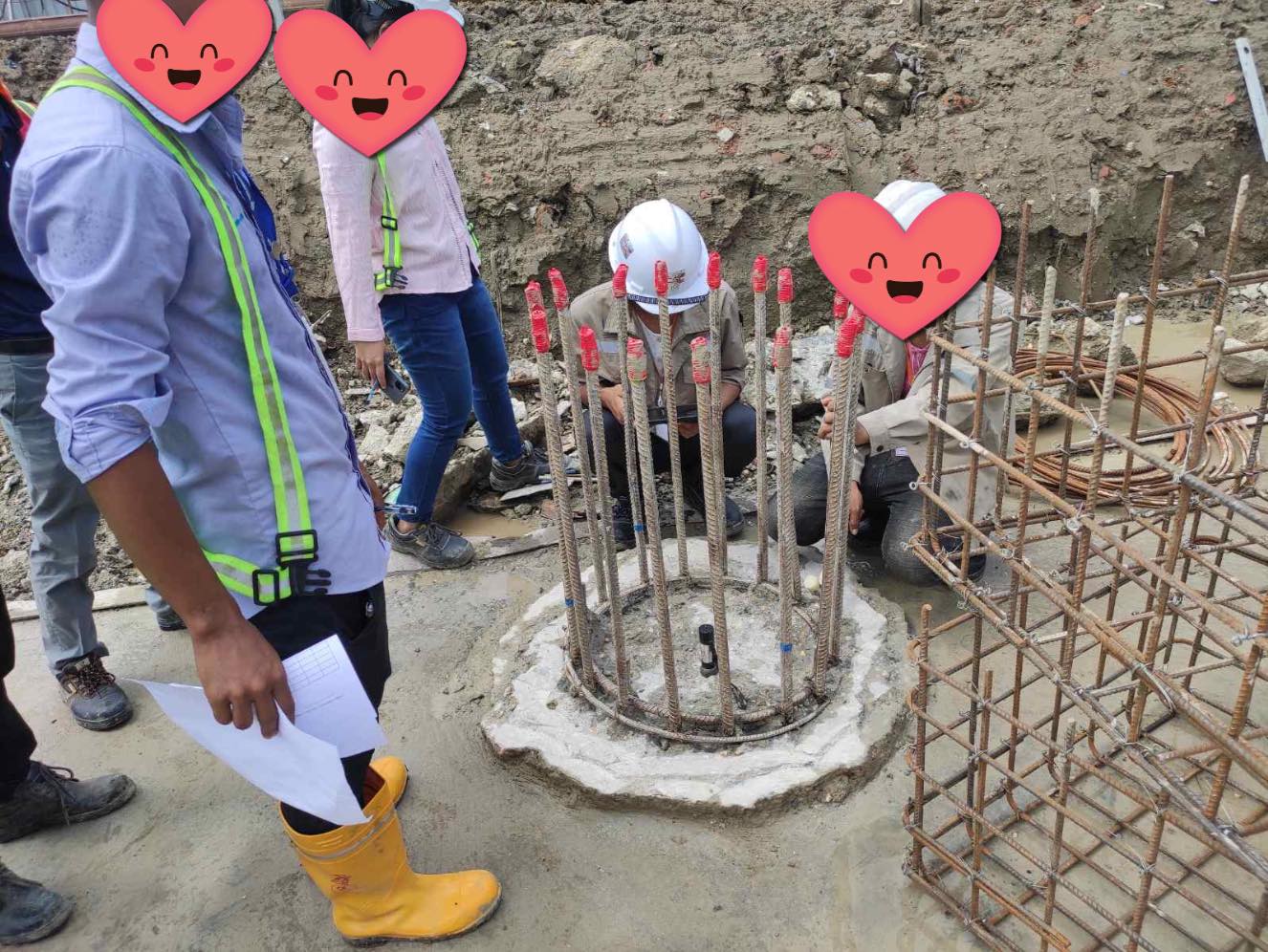

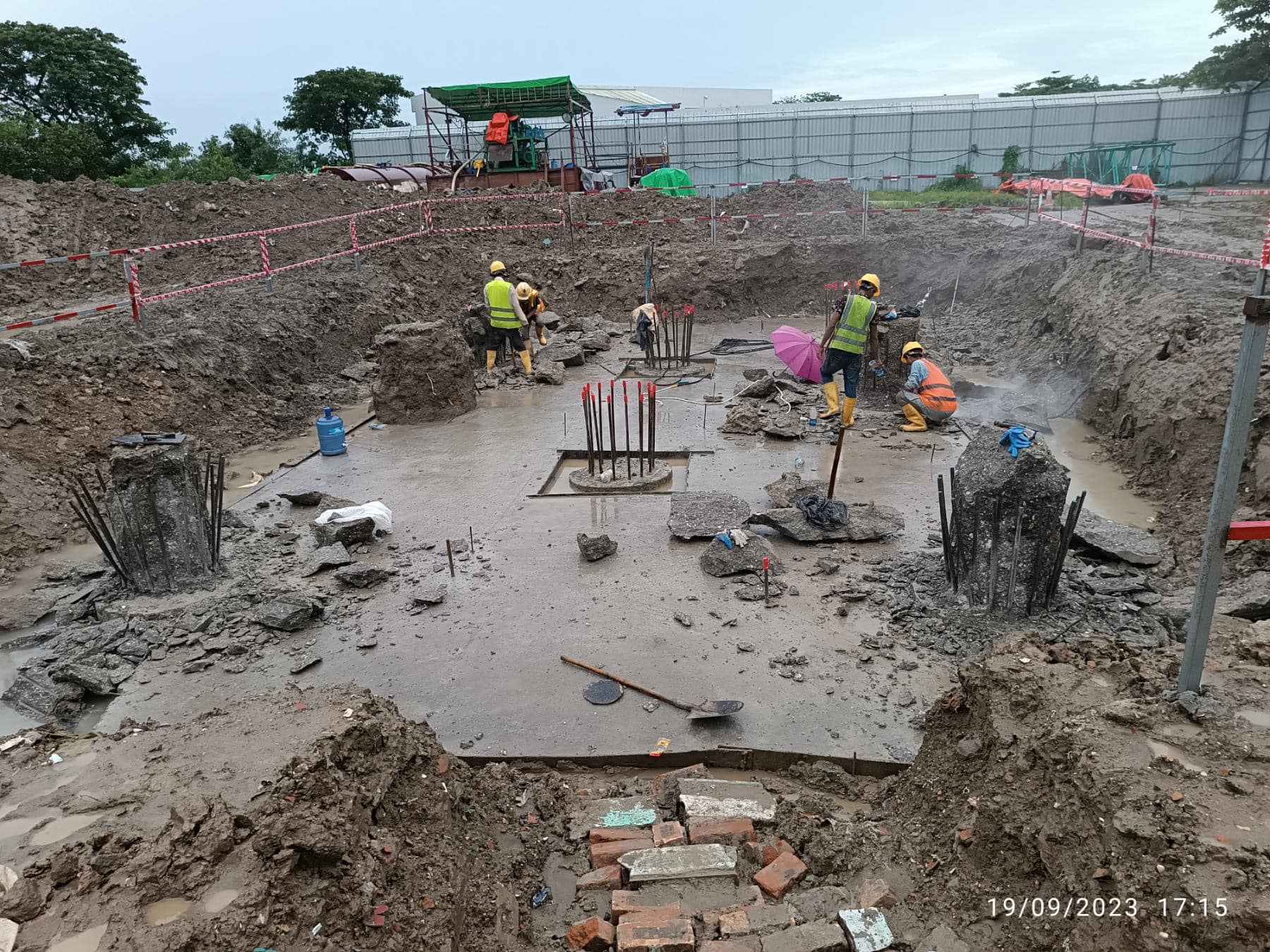

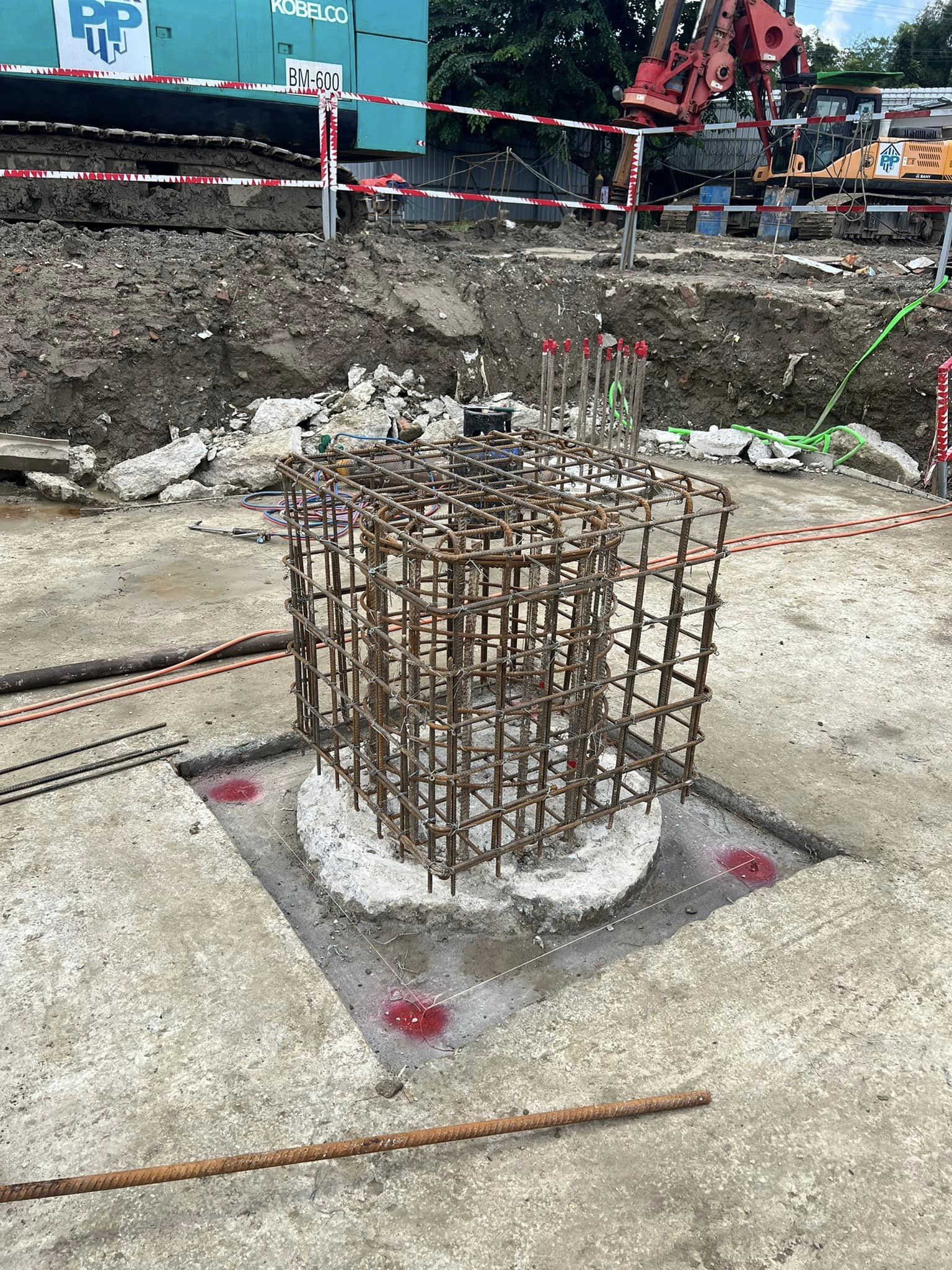

Some scenes from our recently completed load test site.

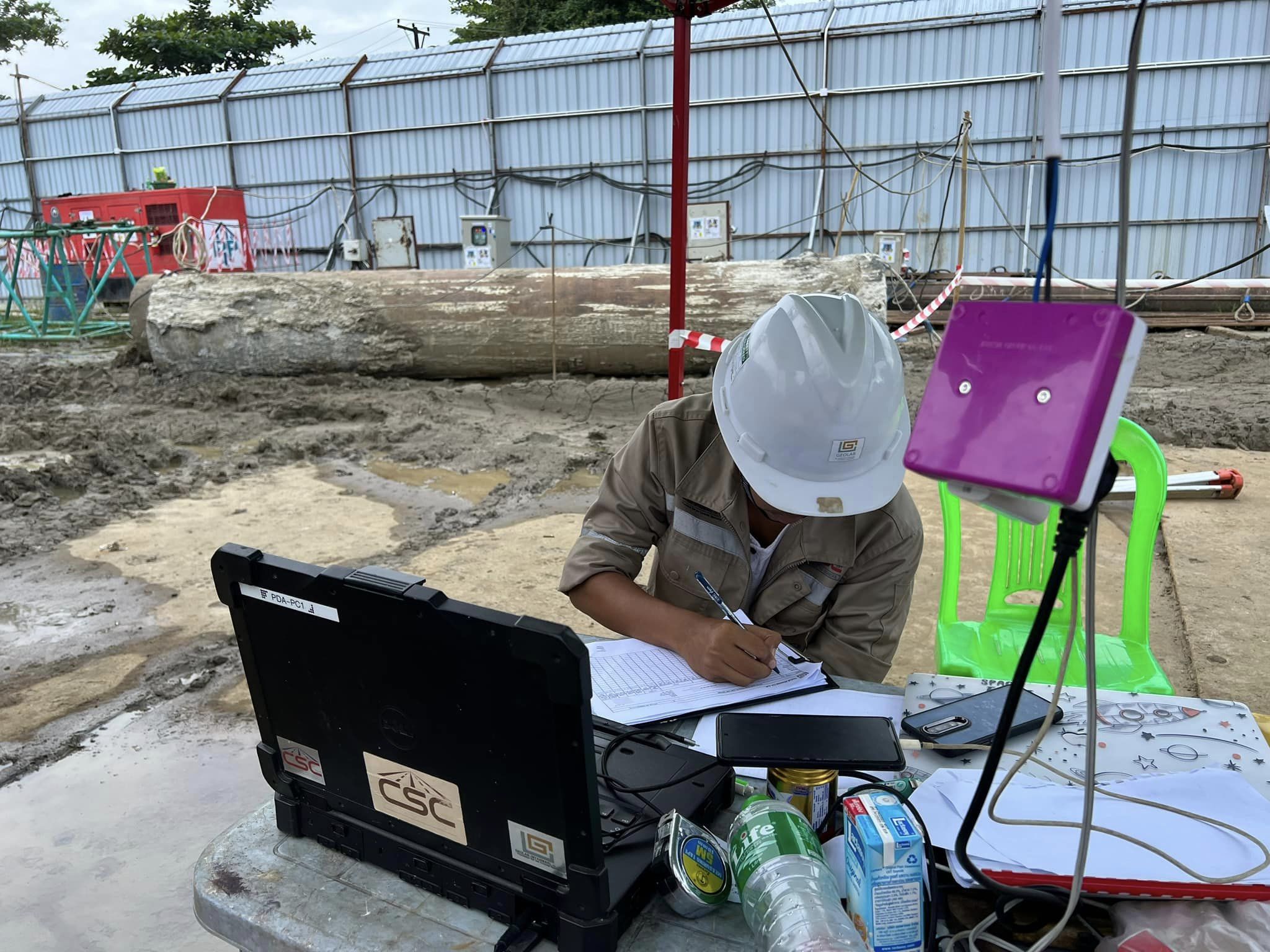

Real Time Web App Monitoring made the pile test result evaluation a lot easier in real time, for all parties concerned, owners, designers, piling contractors & authorities especially in ultimate test situation where pile is tested up to 300% of design load.

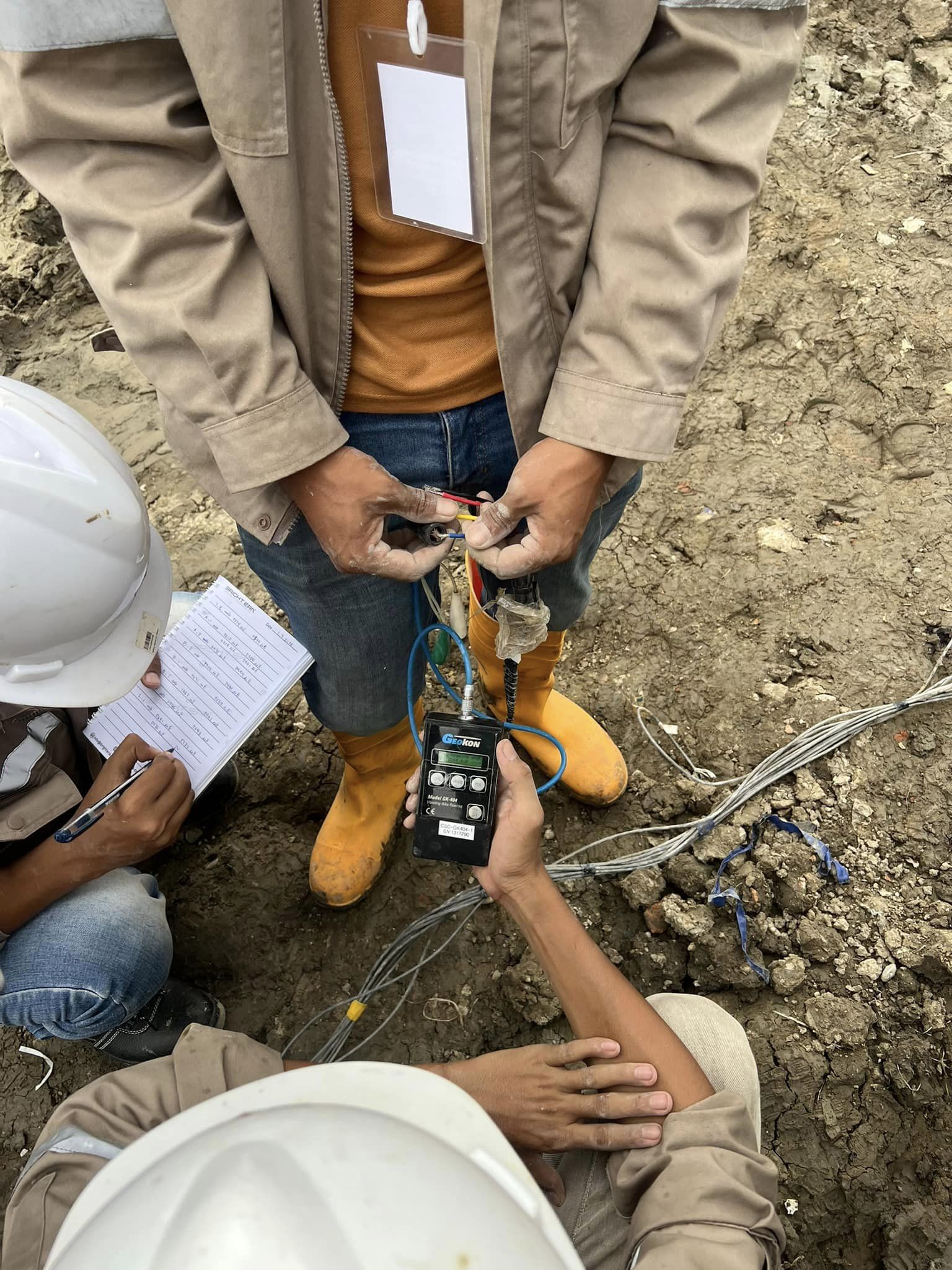

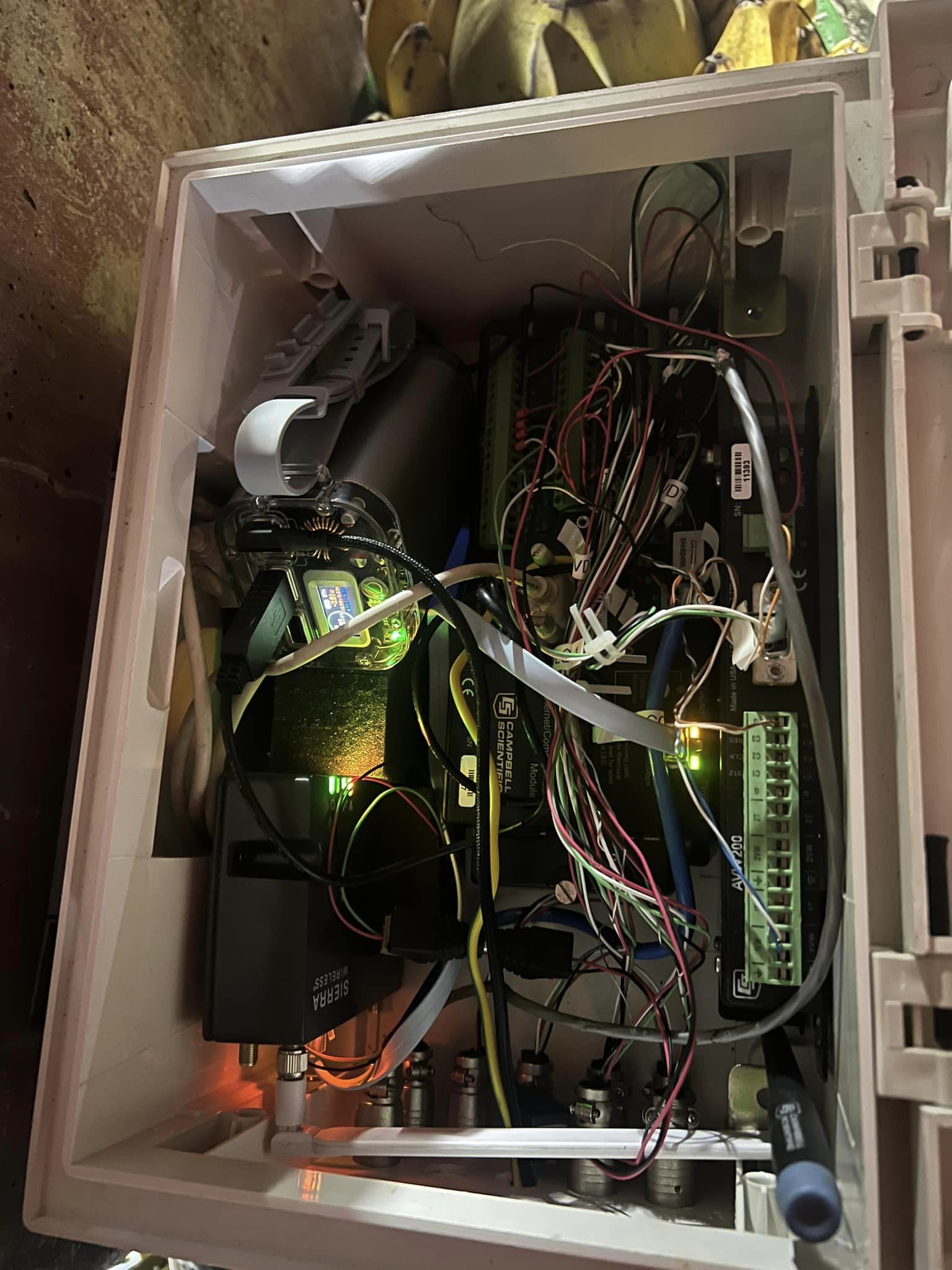

We’ve utilized modern civil geotechnical equipment such as, Dataloggers, Displacement Transducers, Load Transducers, Pressure Transducers, Strain Gauge Transducer to monitor the pile testing conditions.

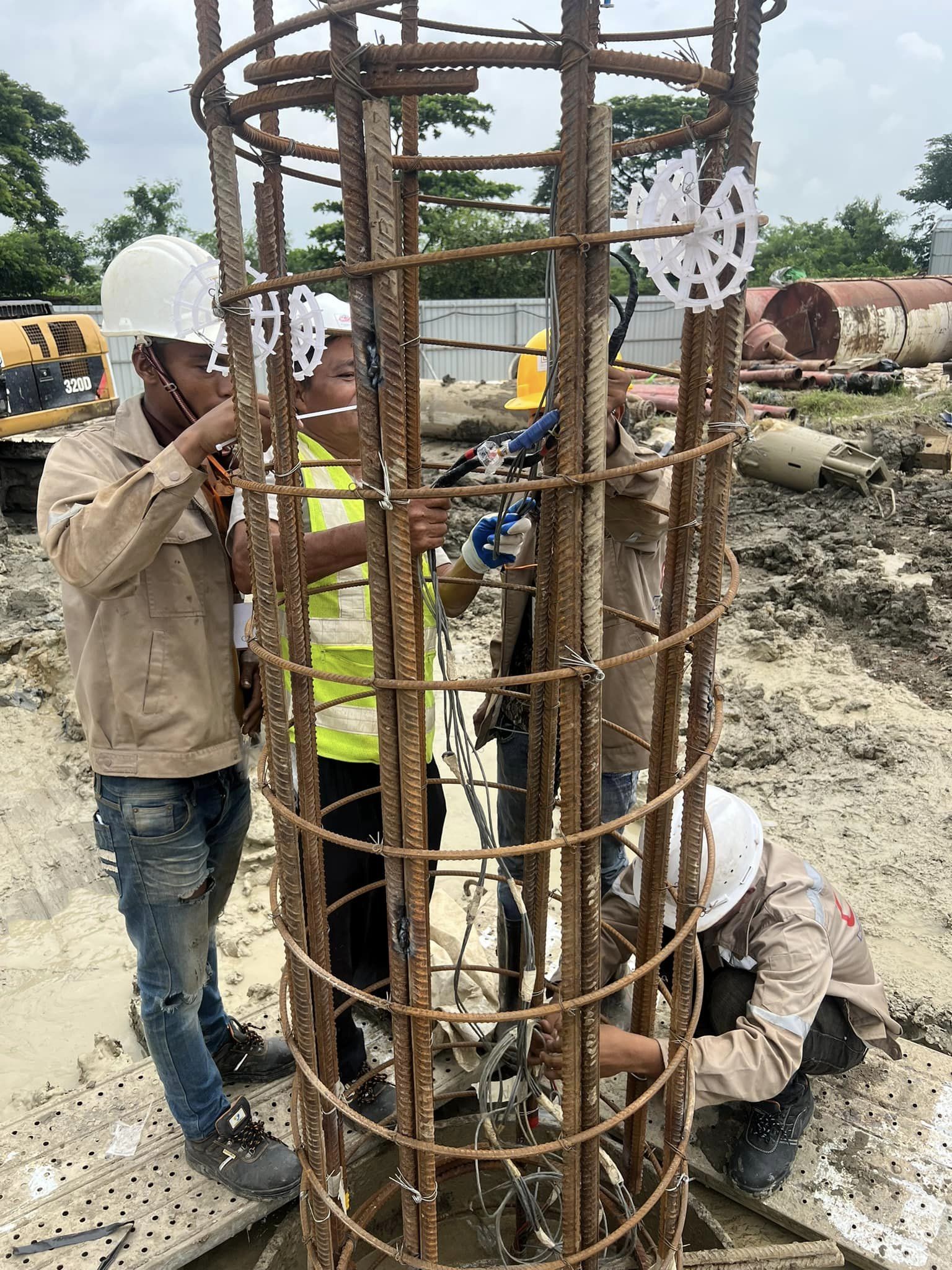

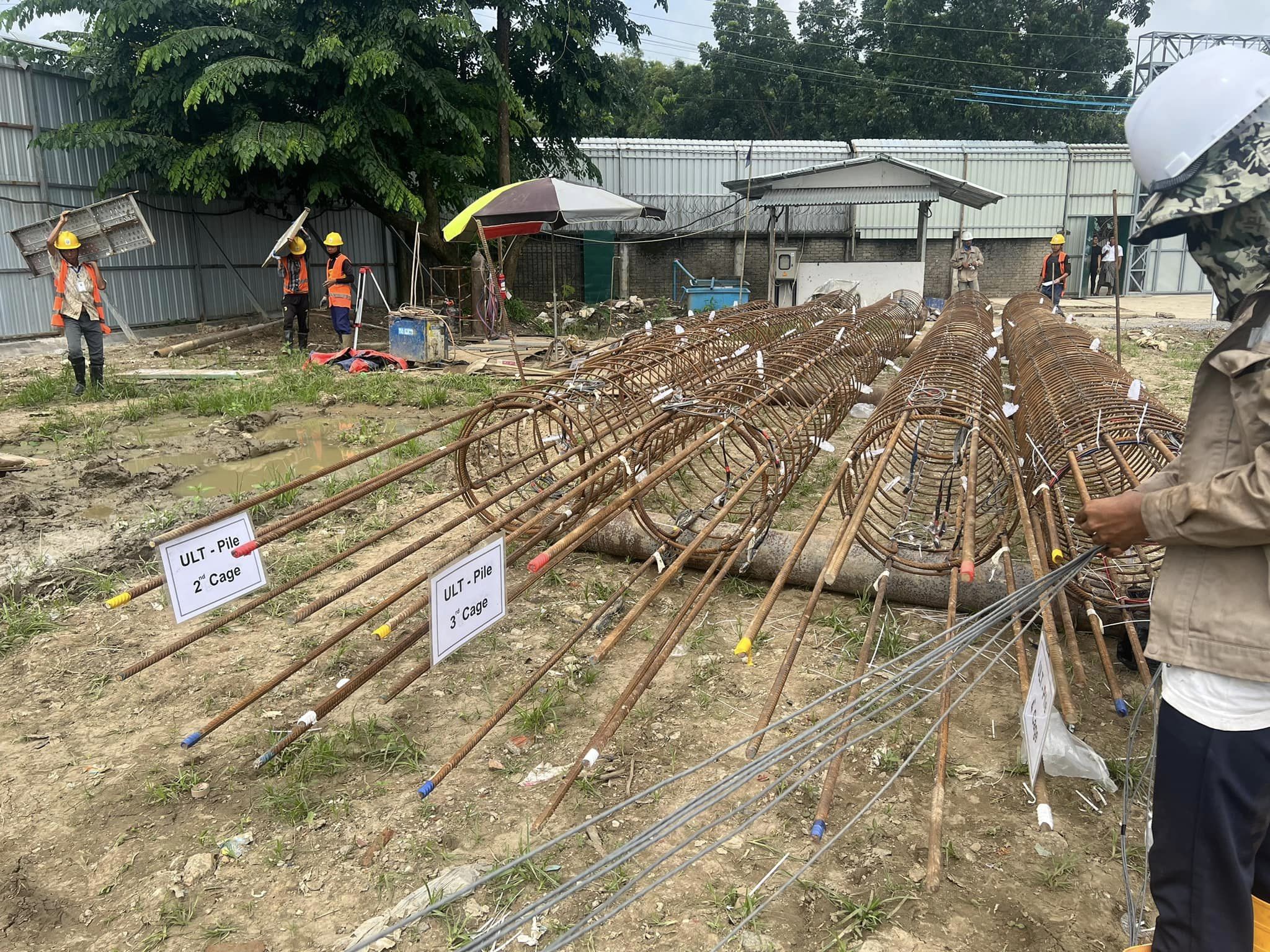

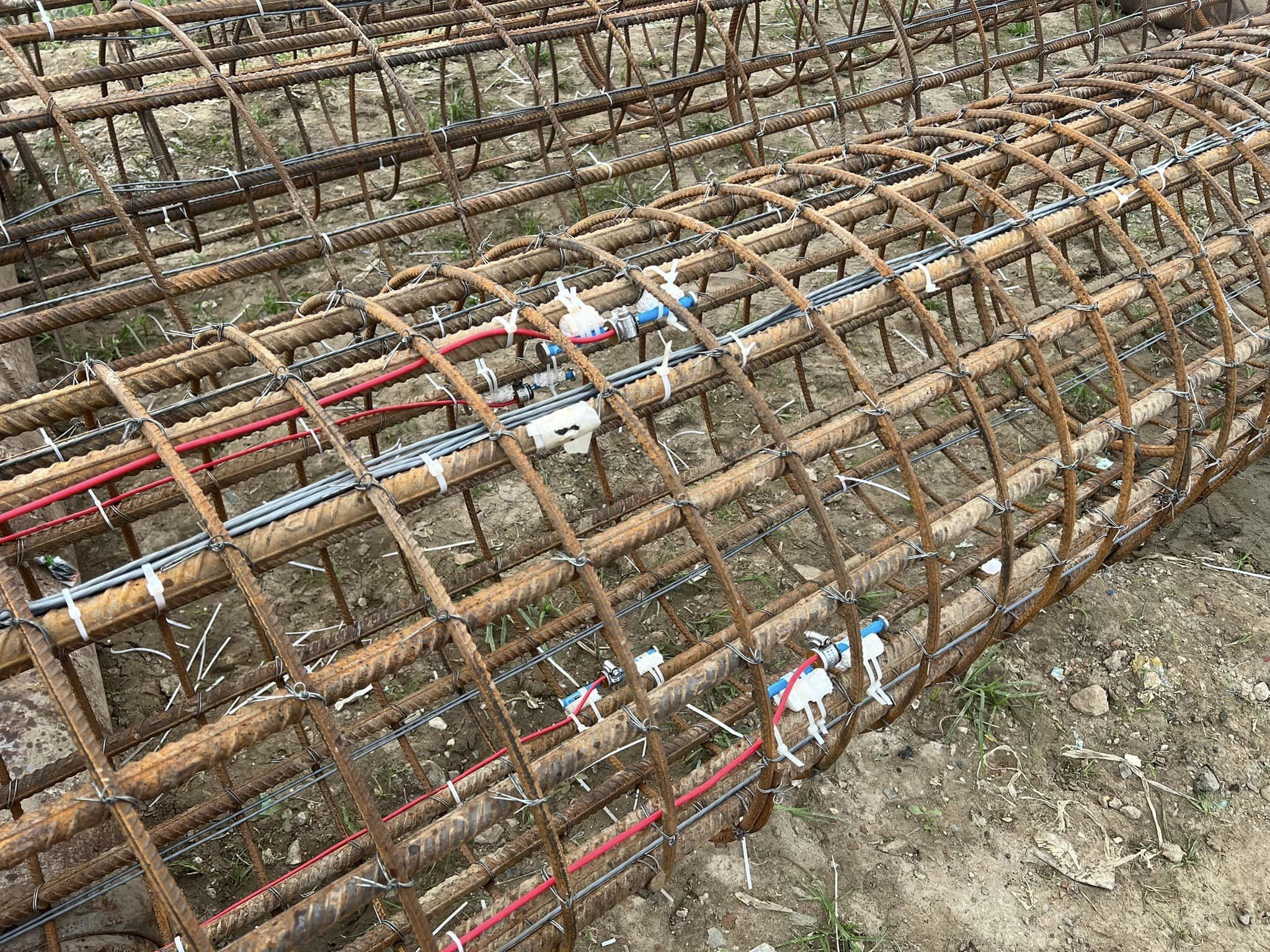

With our newly innovated method of cabling, the sensor installation to pile cages (48m) while lowering to bore hole can be accomplished within recording breaking 2 hrs with no sensor signal lost (Normally it takes at least 5 hours) allowing the pilling contractor to be more time efficient in pile concrete casting without having to maintain open BH for several hours.

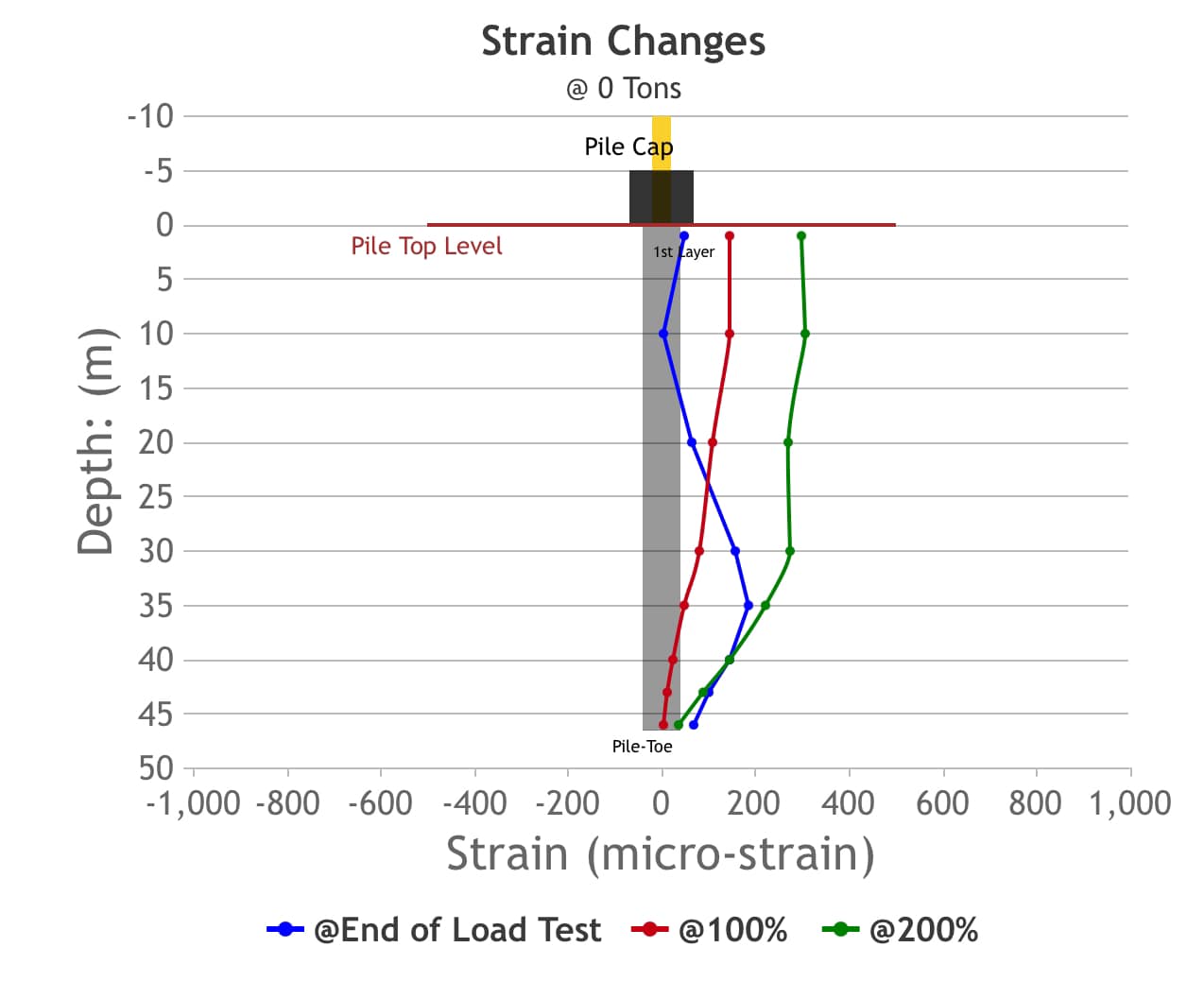

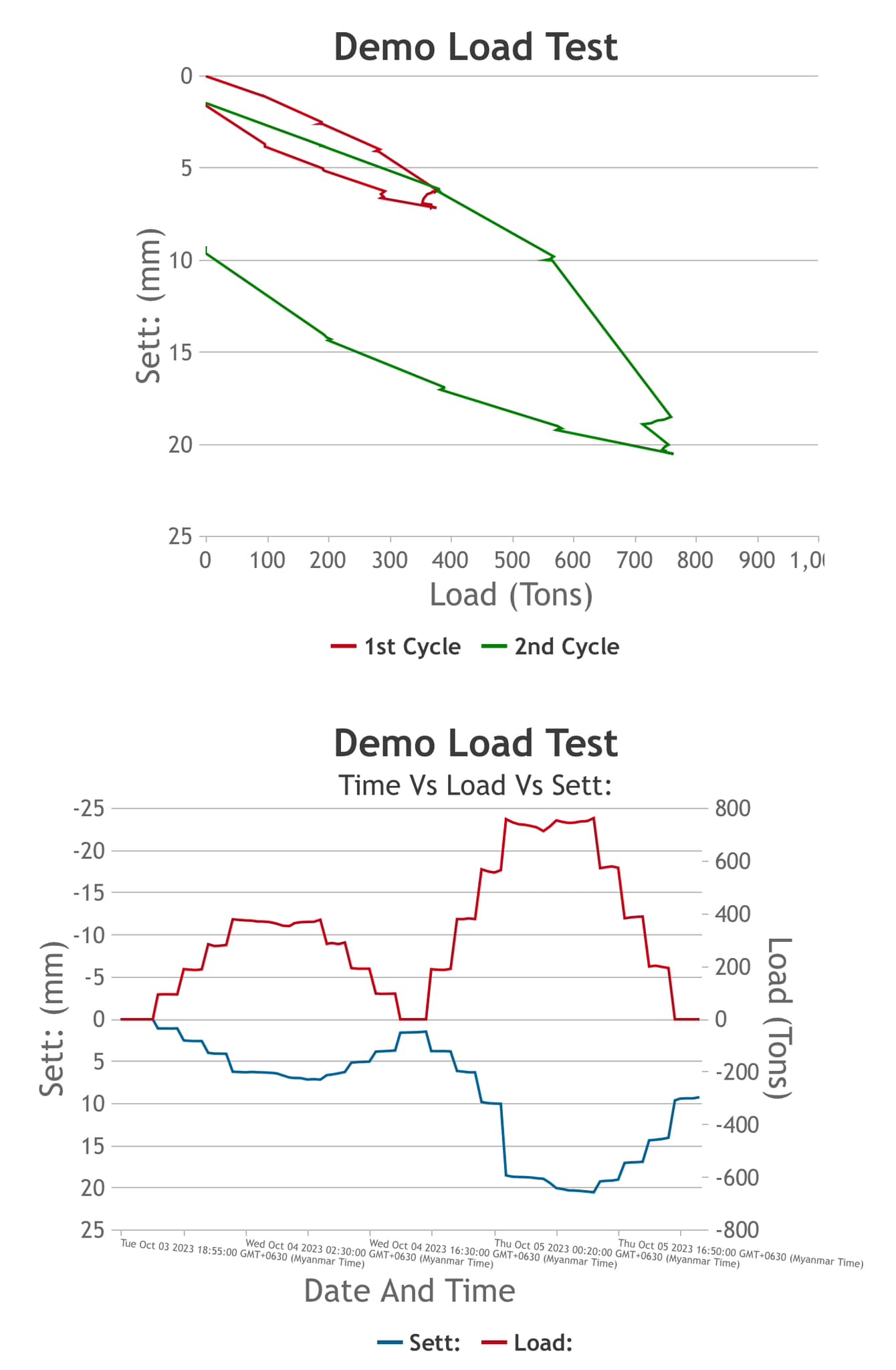

In a load test with strain transducers with Real Time Test Data Monitoring, pile load distribution along pile shaft and pile toe is obvious and readily can be seen during loading condition. (100%, 200%, After Test)
Example Load test can be seen at
https://rtmc.csc1999.com/Demo/demoloadtest-2.html
#GeoLabMyanmar#StrainGauge#CampbellSciOnLocation#Campbellsci
