Solar Farm Foundation Tests. .

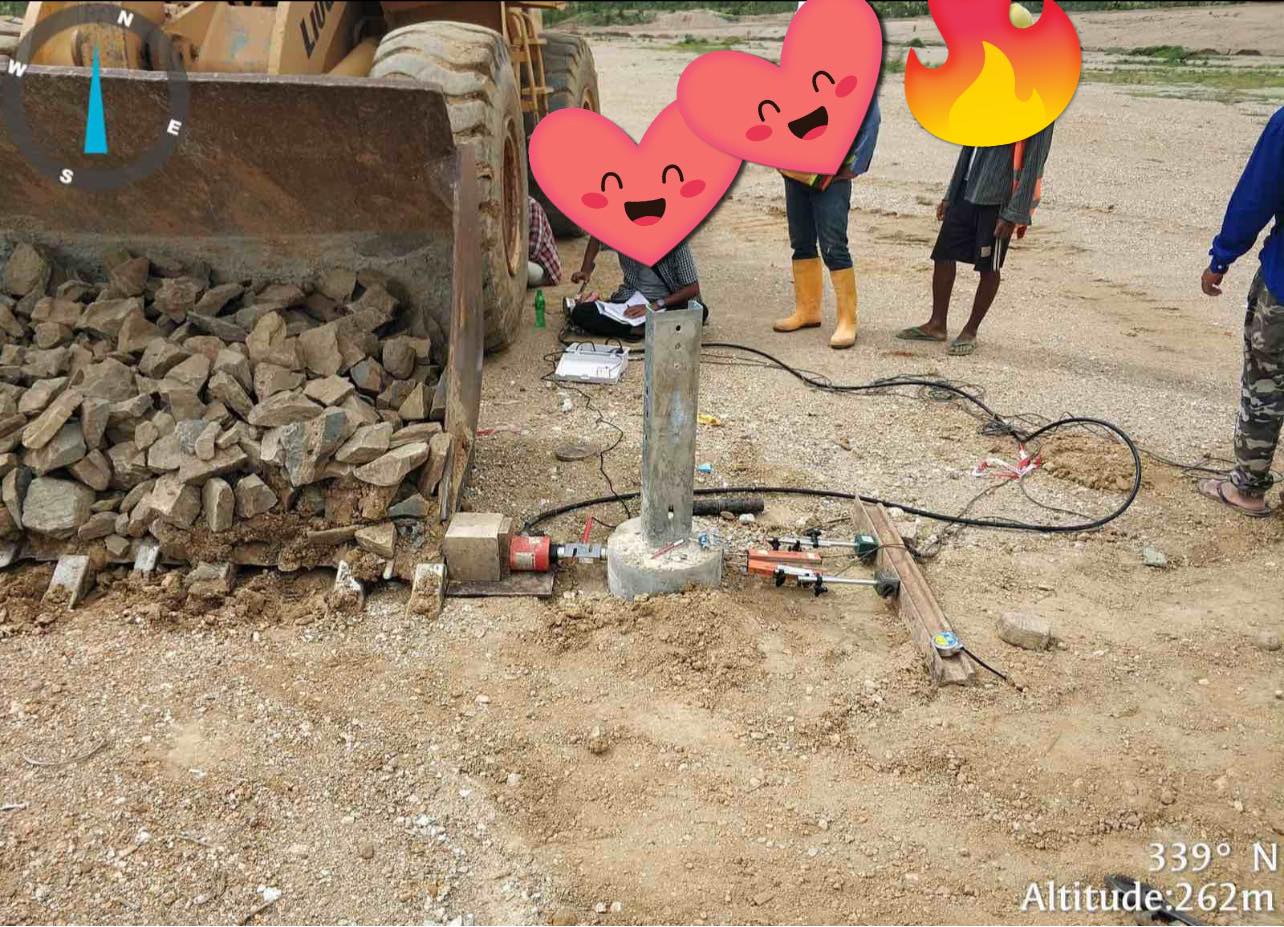

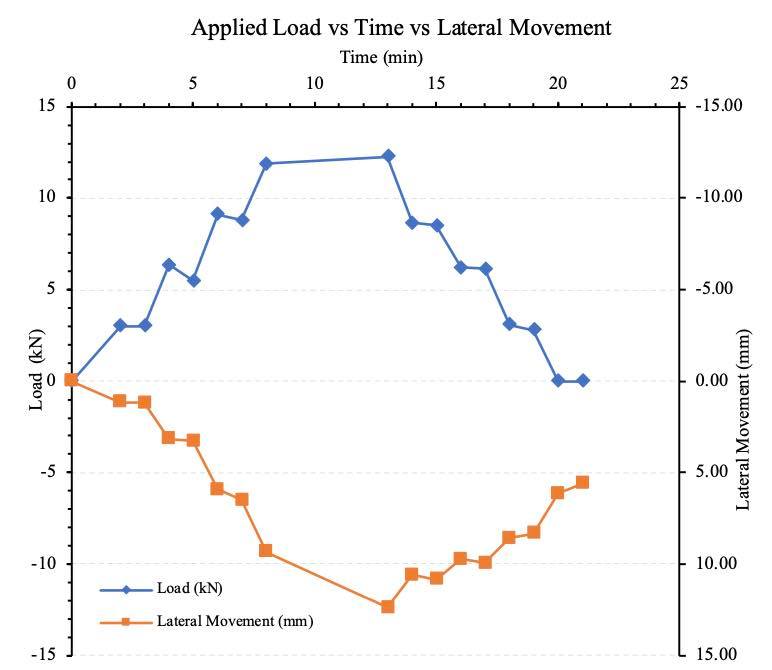

Unlike the traditional piles, piles used in solar farm are intended primarily to withstand pull-out, lateral forces caused by wind and storms.

Geolab only utilizes modern geotechnical instruments in everyday testing.

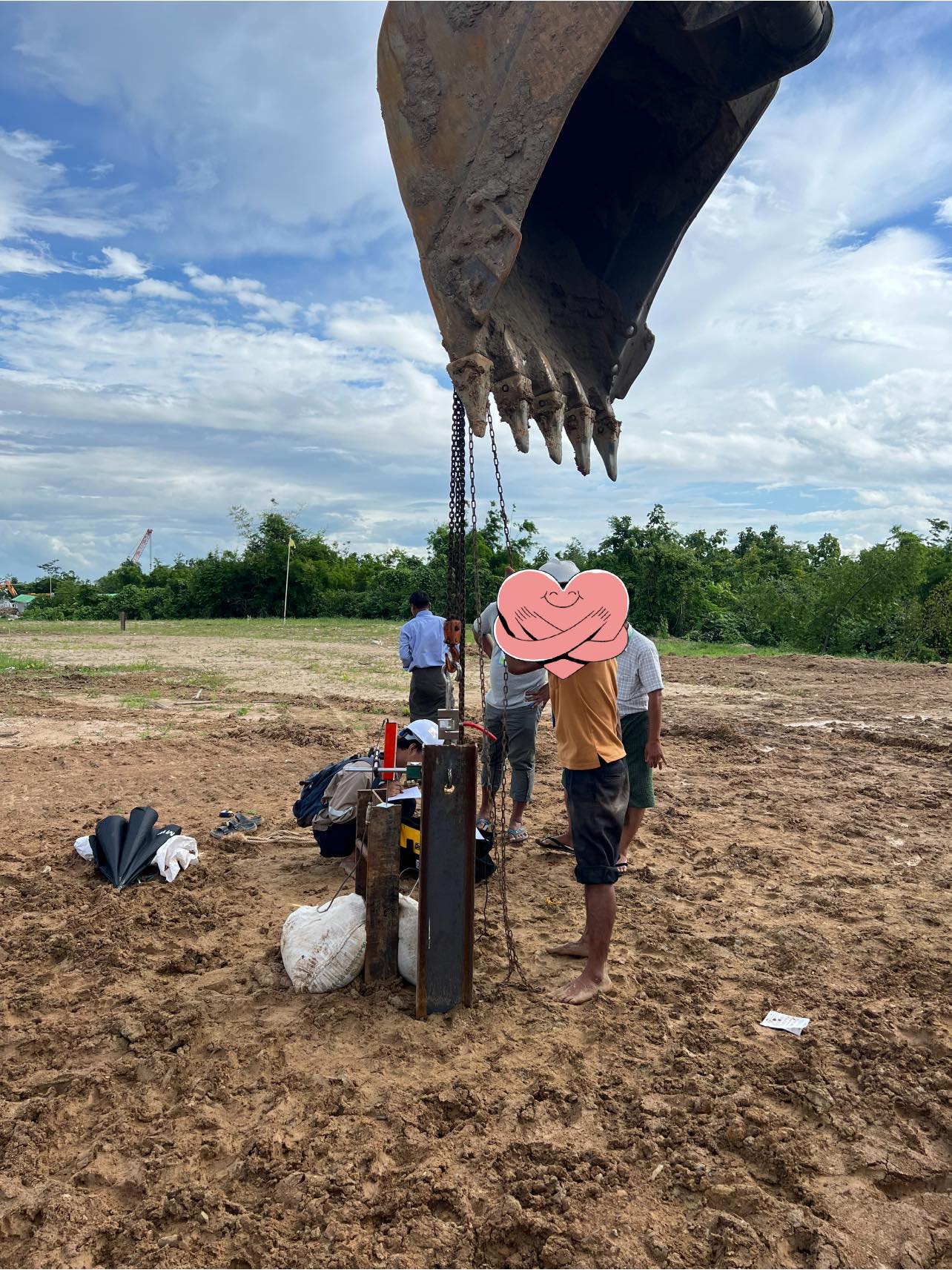

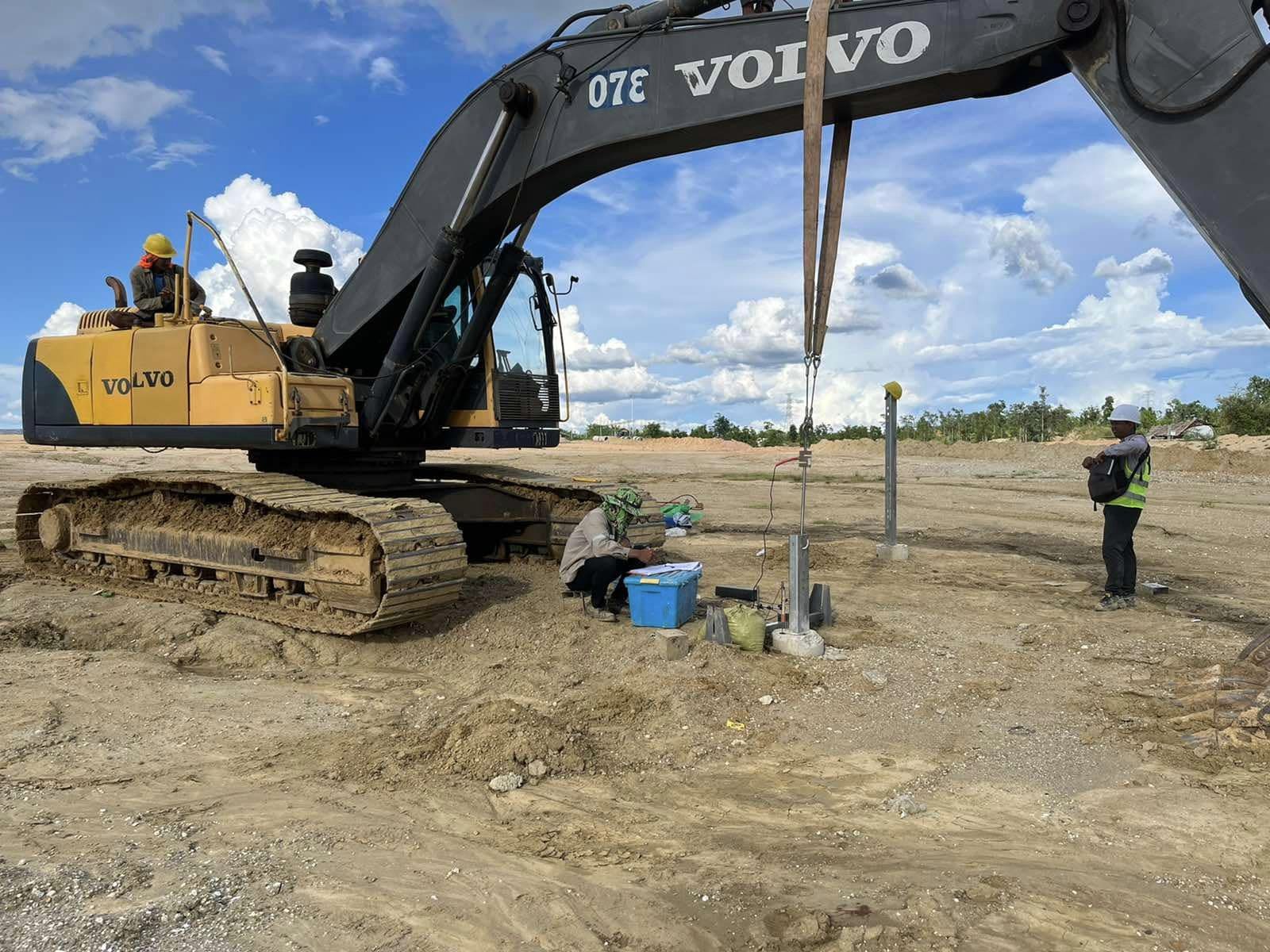

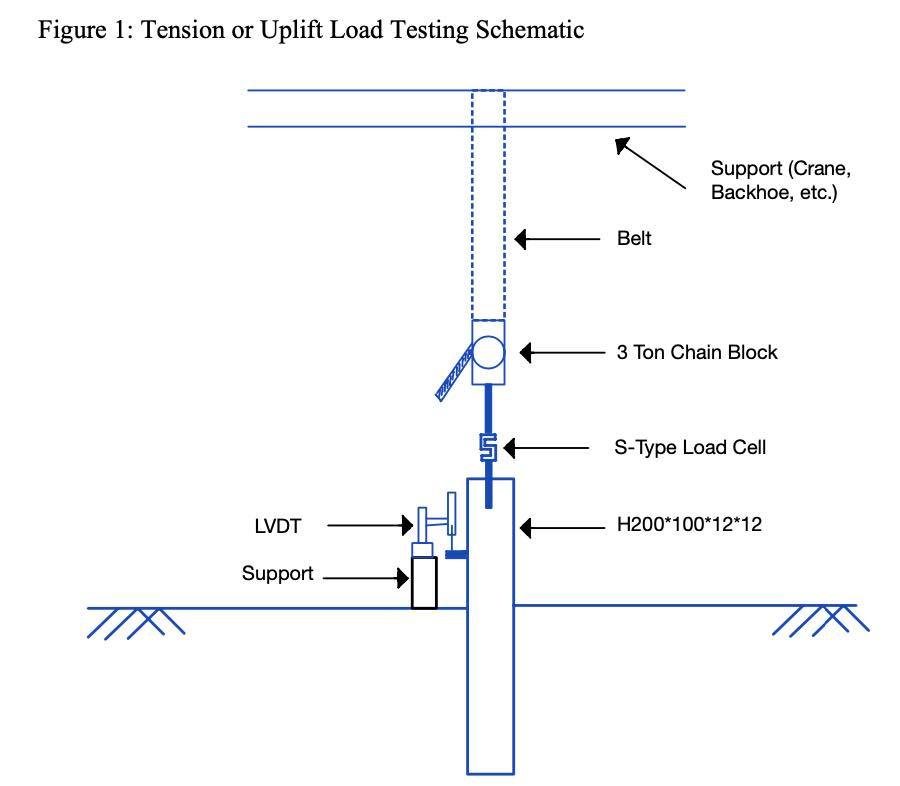

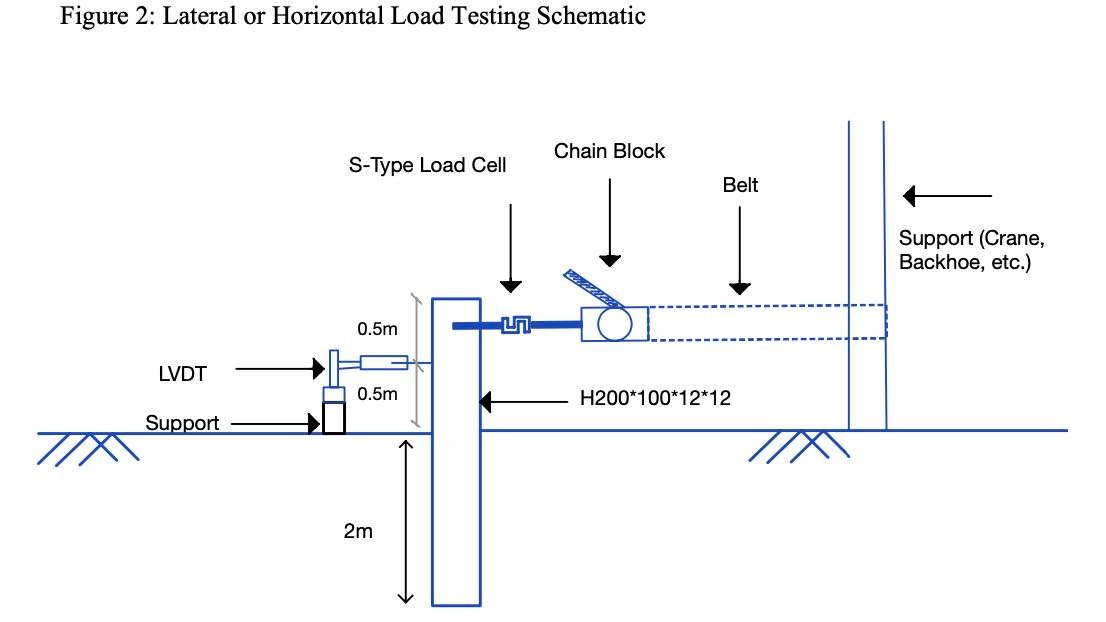

In a pull out test, S Type load cell was used. Without it, complex facility is required to perform pulling.

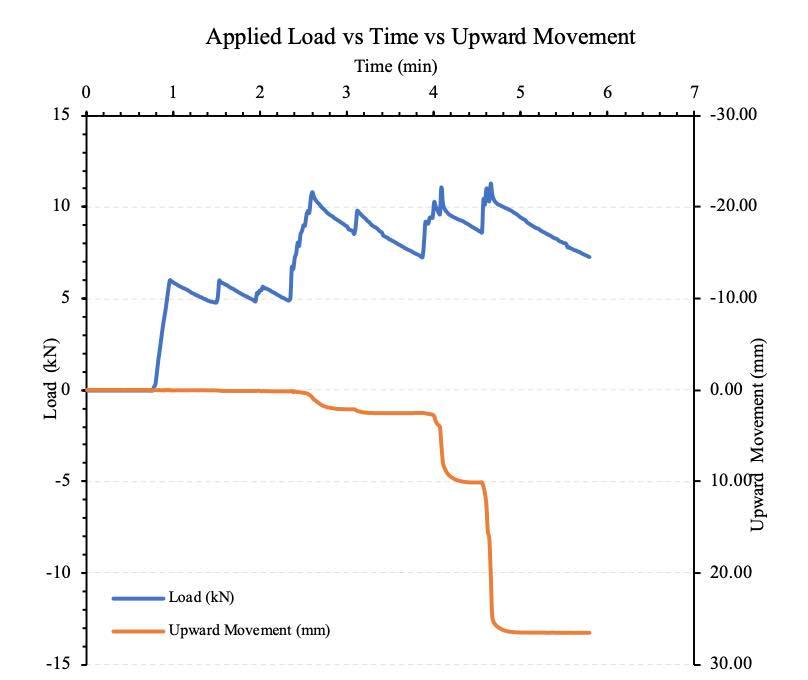

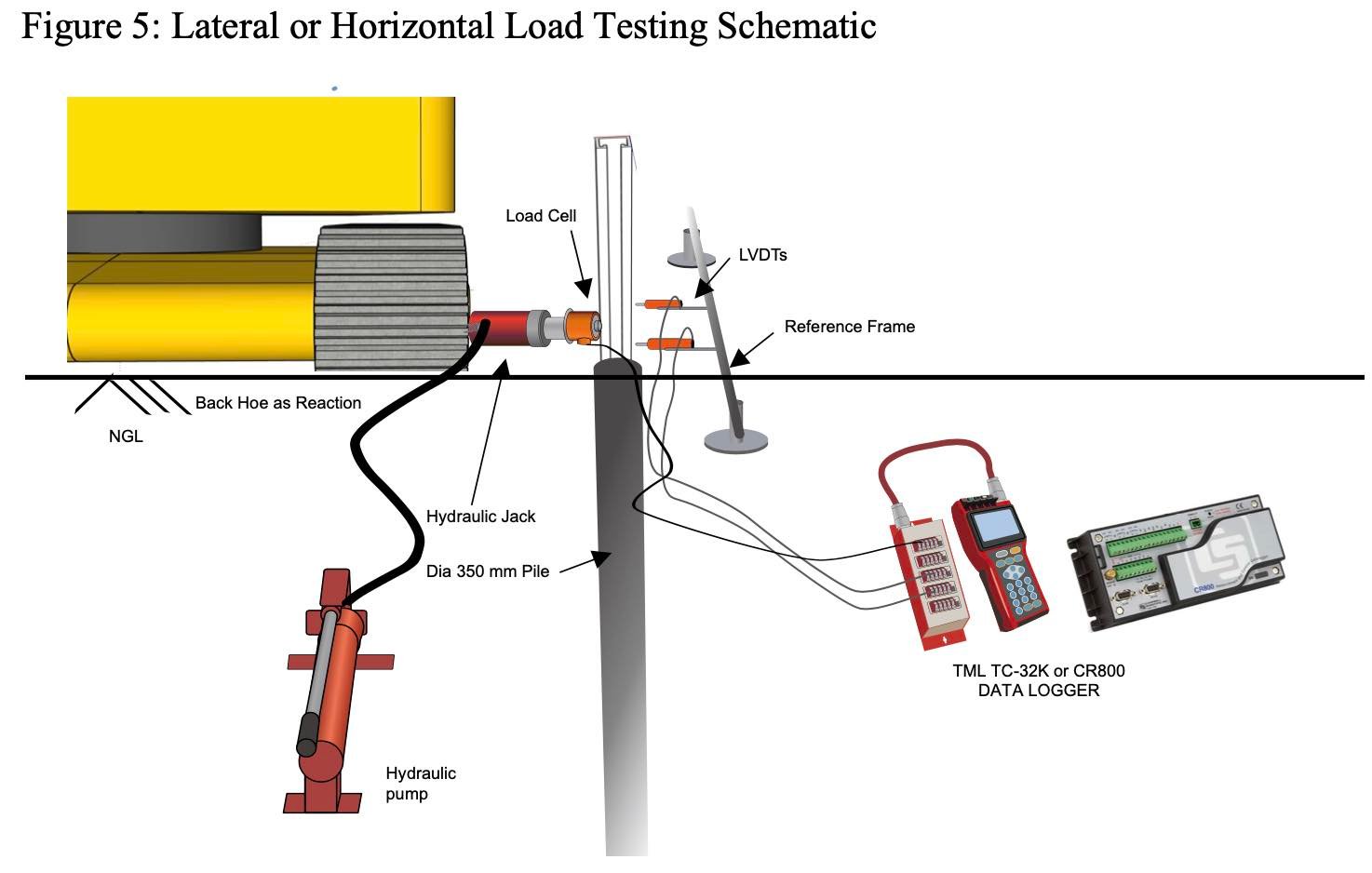

When the unexpected results are observed, Datalogger is configured to record data @1 s interval so that real time data was not missed, especially in time critical moments, where manual recording is not an option.


Aung Htet

Civil & Geotechnical Engineer
