CSC, GeoLab, Instrumentation

Bridge Monitoring (Rail Bridge) (Stress – Strain)

by Aung Htet
January 20, 2023

One of the remarkable project !

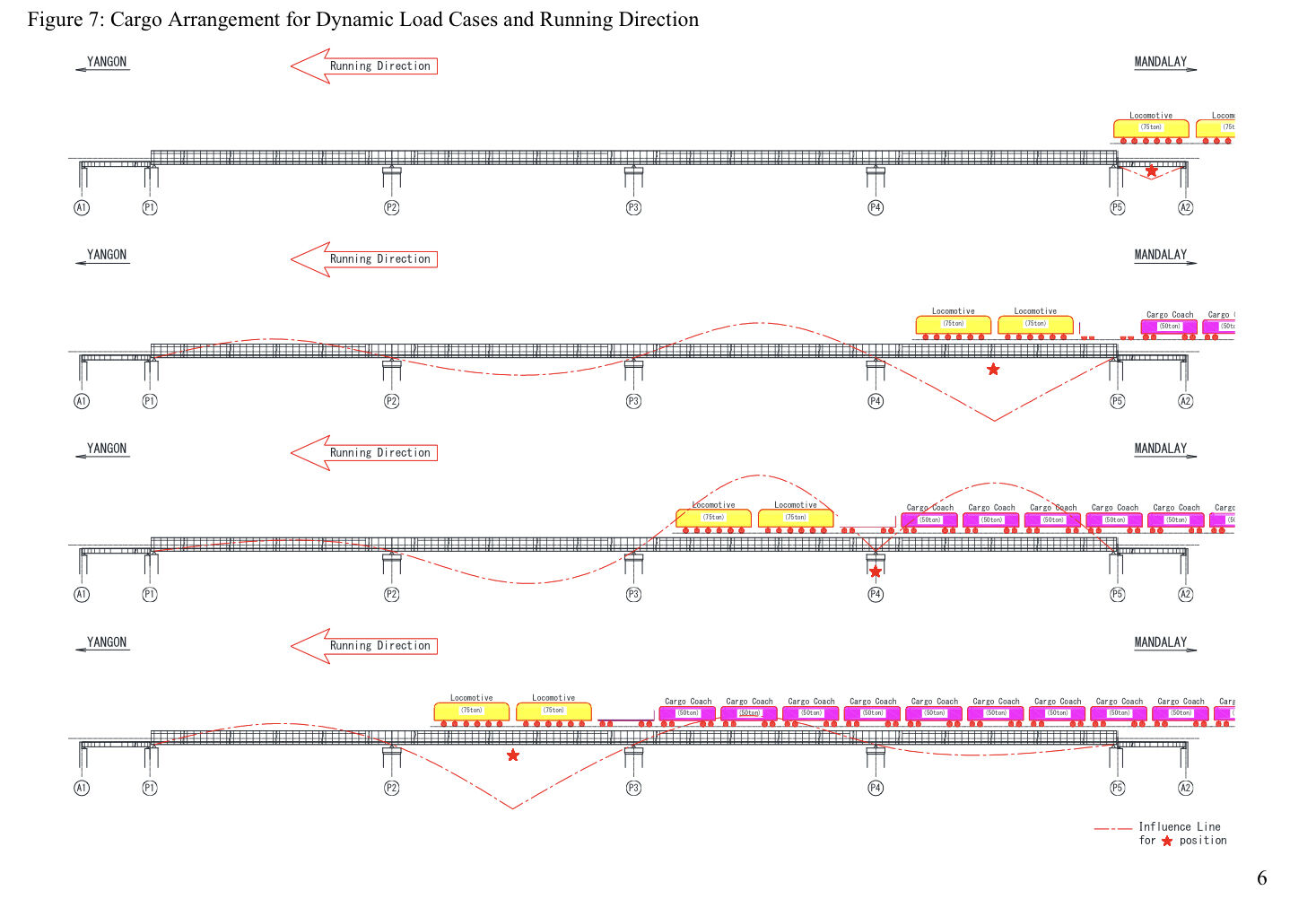

Newly commissioned Rail Bridge performance monitoring during train passing with full load and maximum speed & train stationed statically.

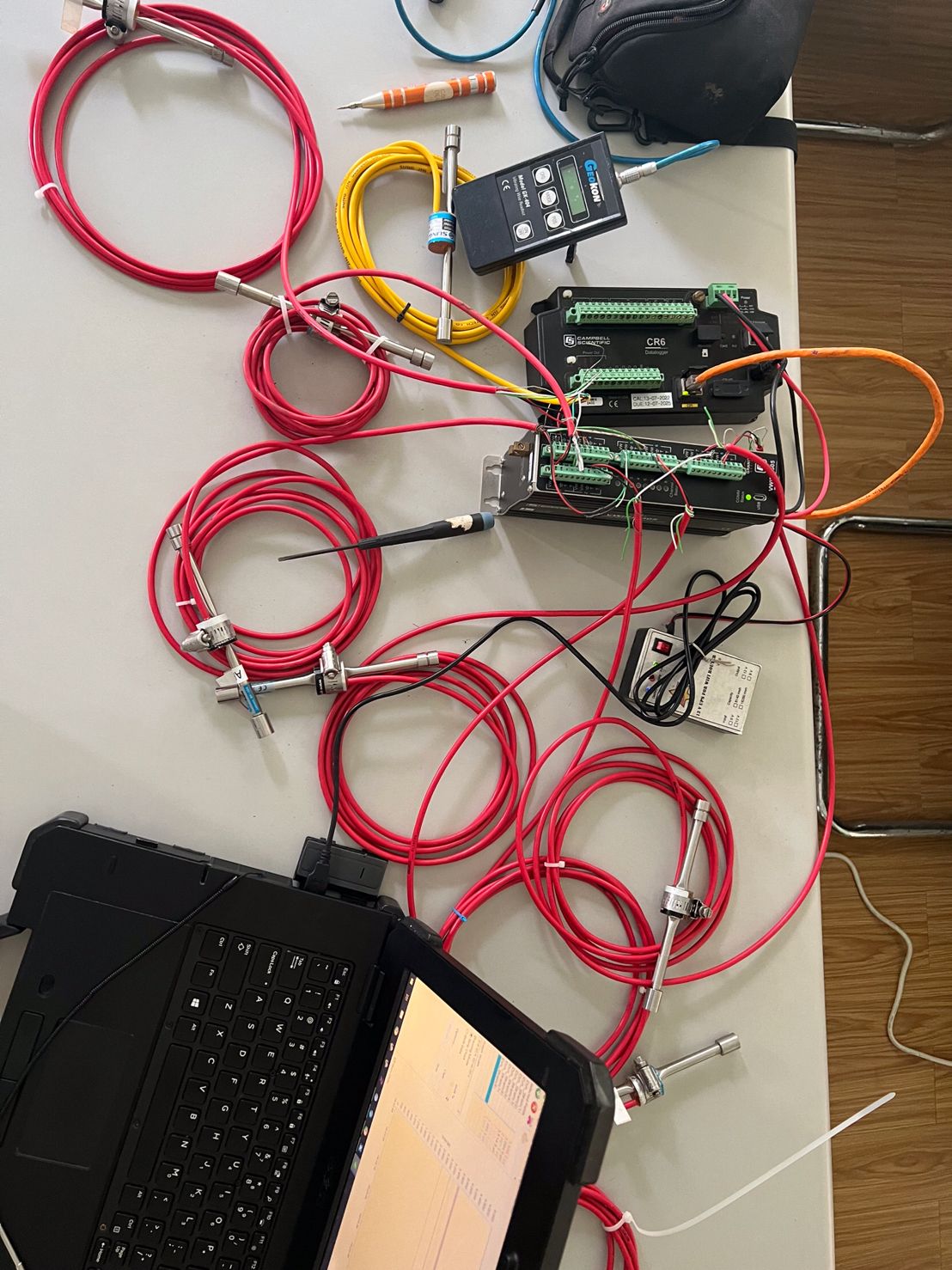

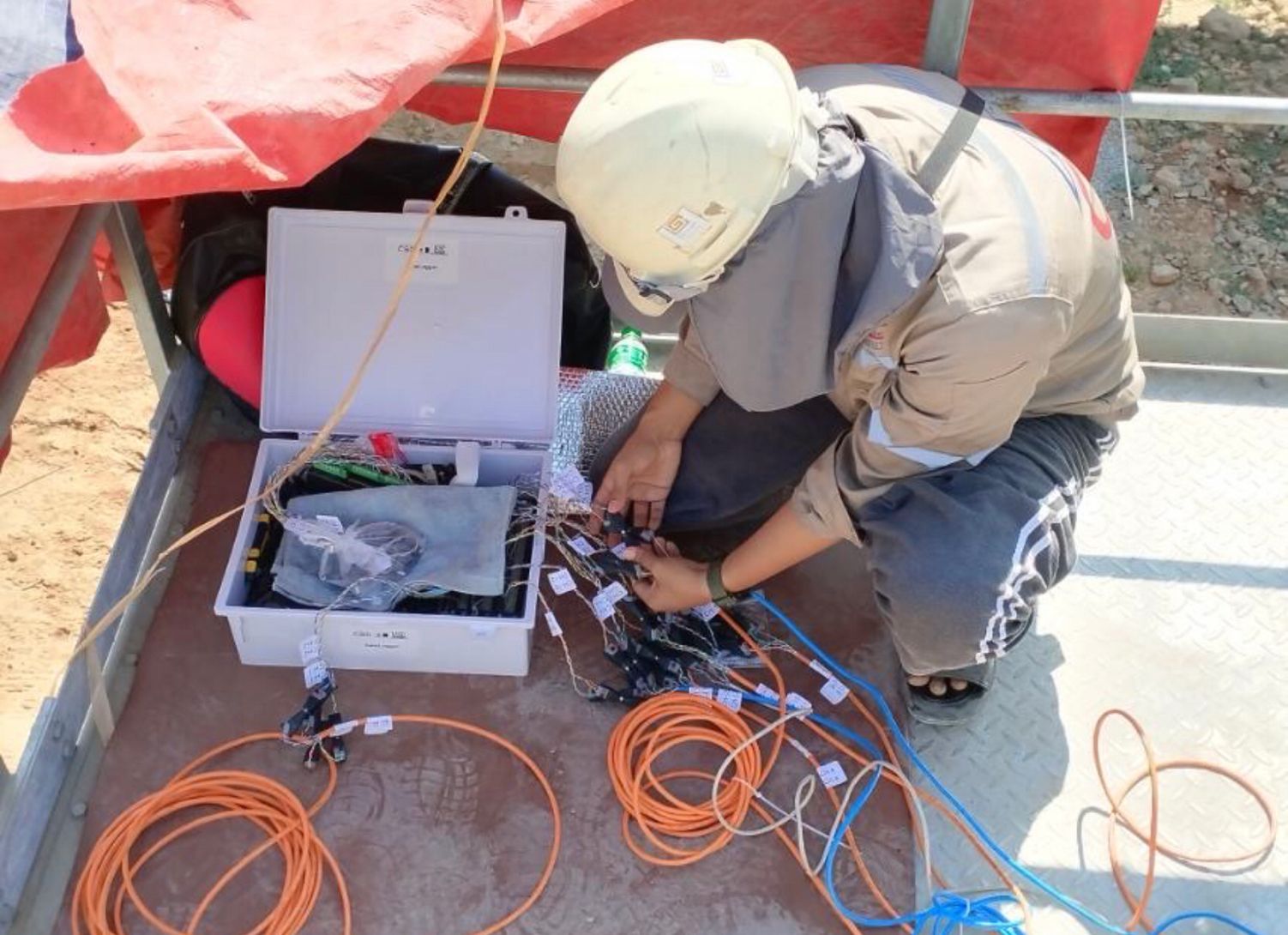

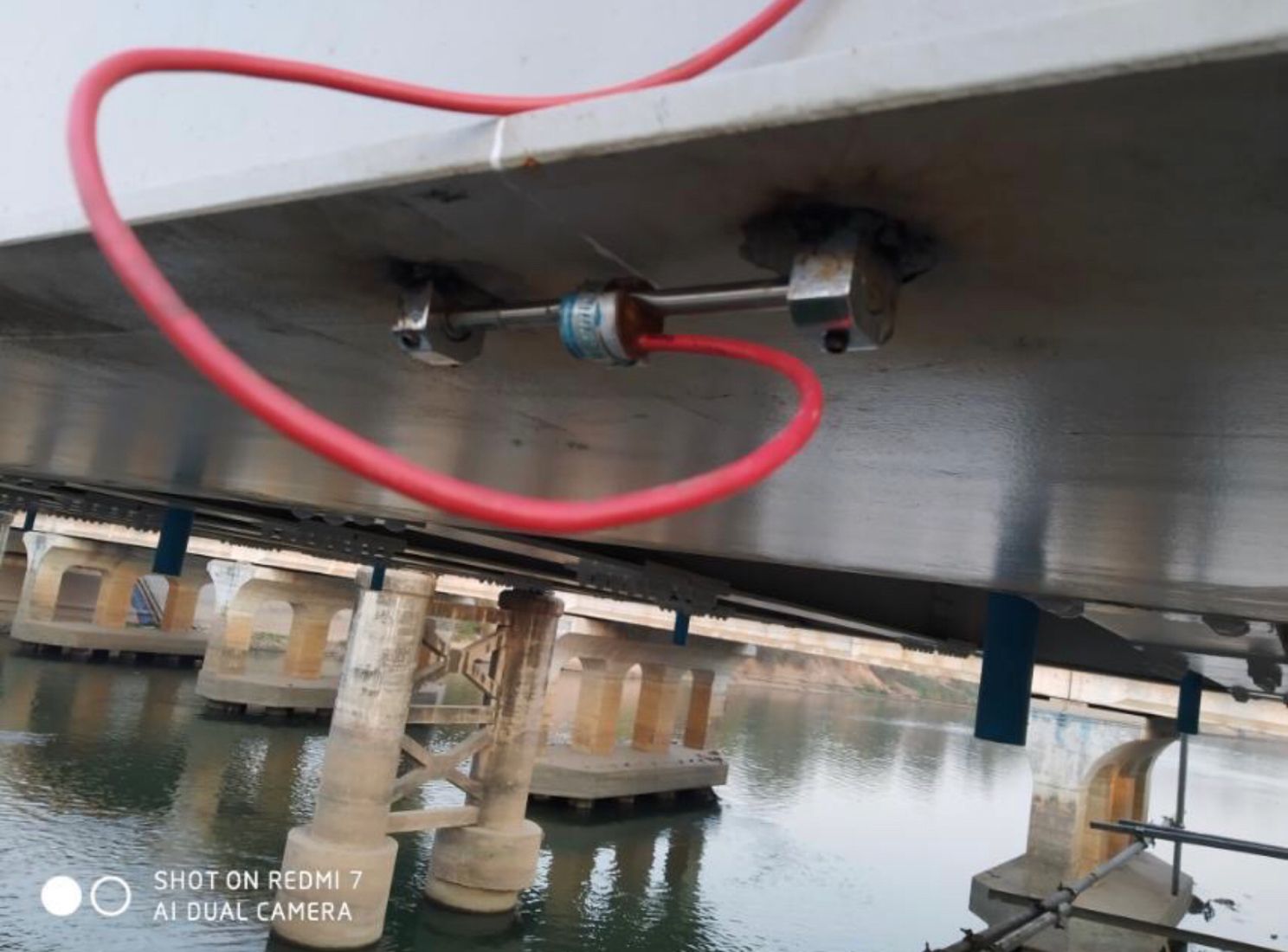

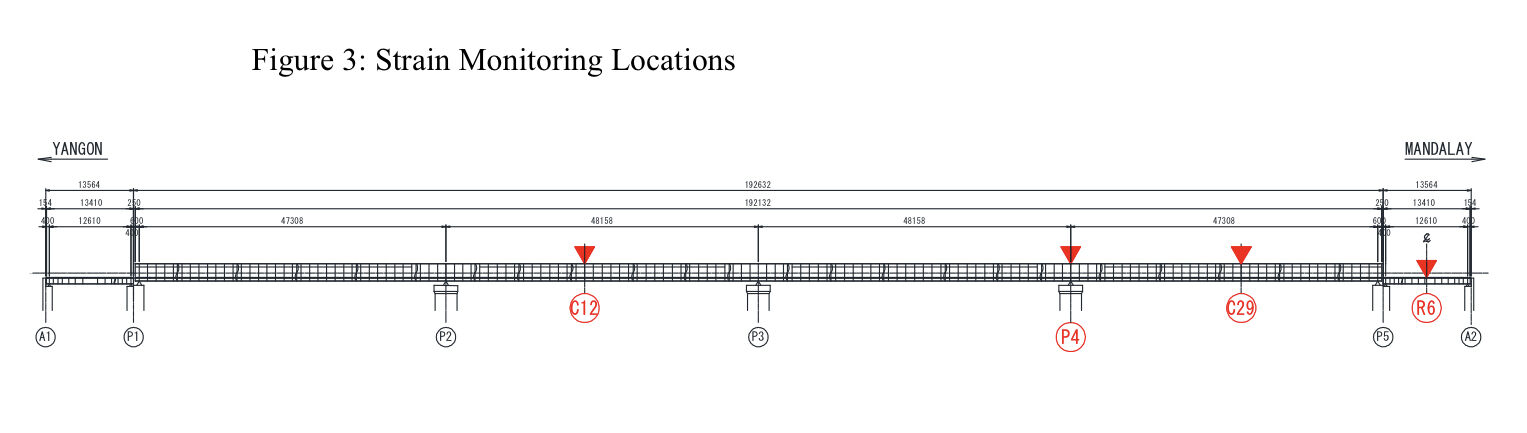

We’ve utilized campbell scientific CR6 & VWire dynamic data-loggers, Geokon Model 4000 Vibrating Wire Strain Gauges attached to steel box & plate girders (mid-span, support) @ 16 locations.

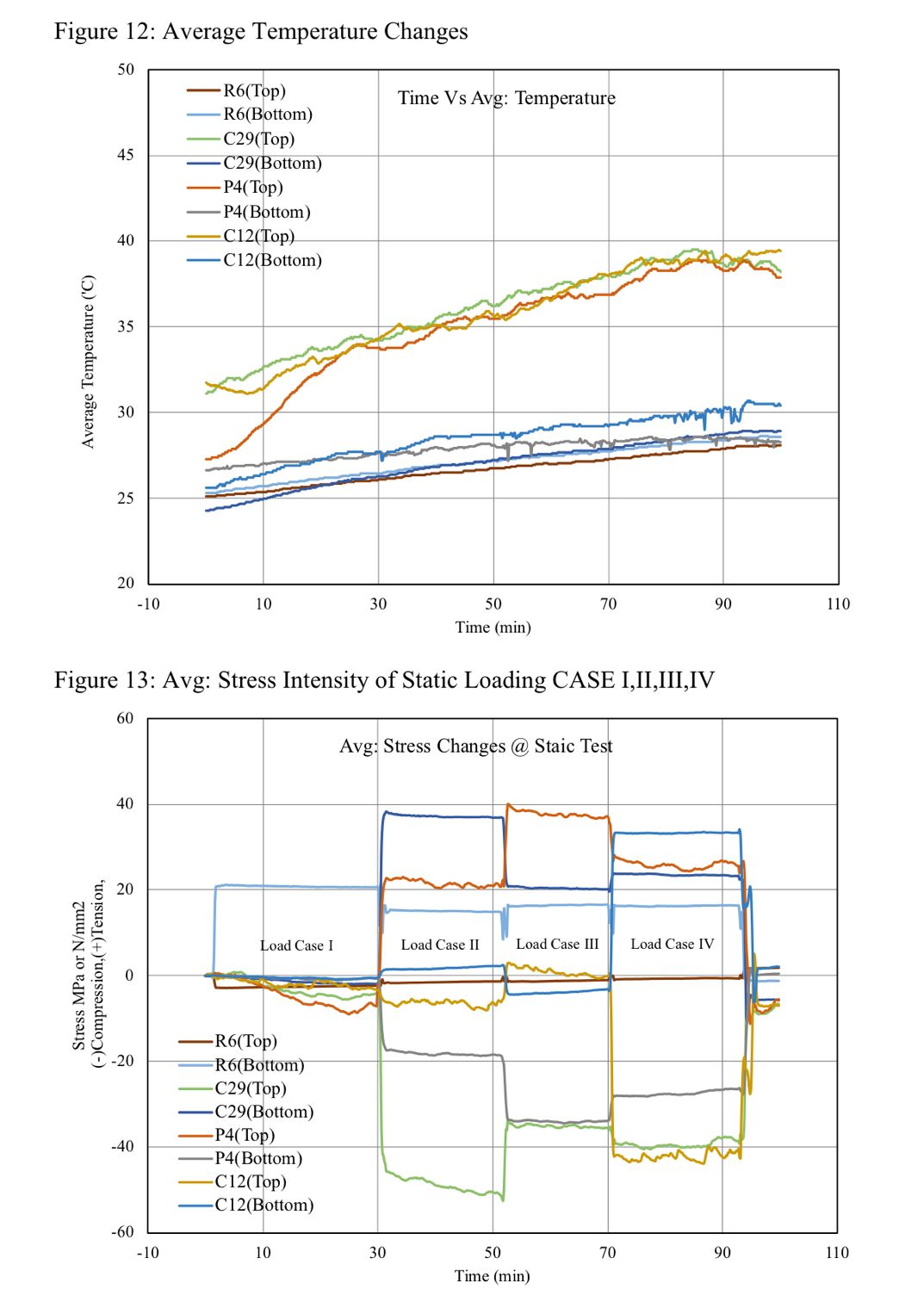

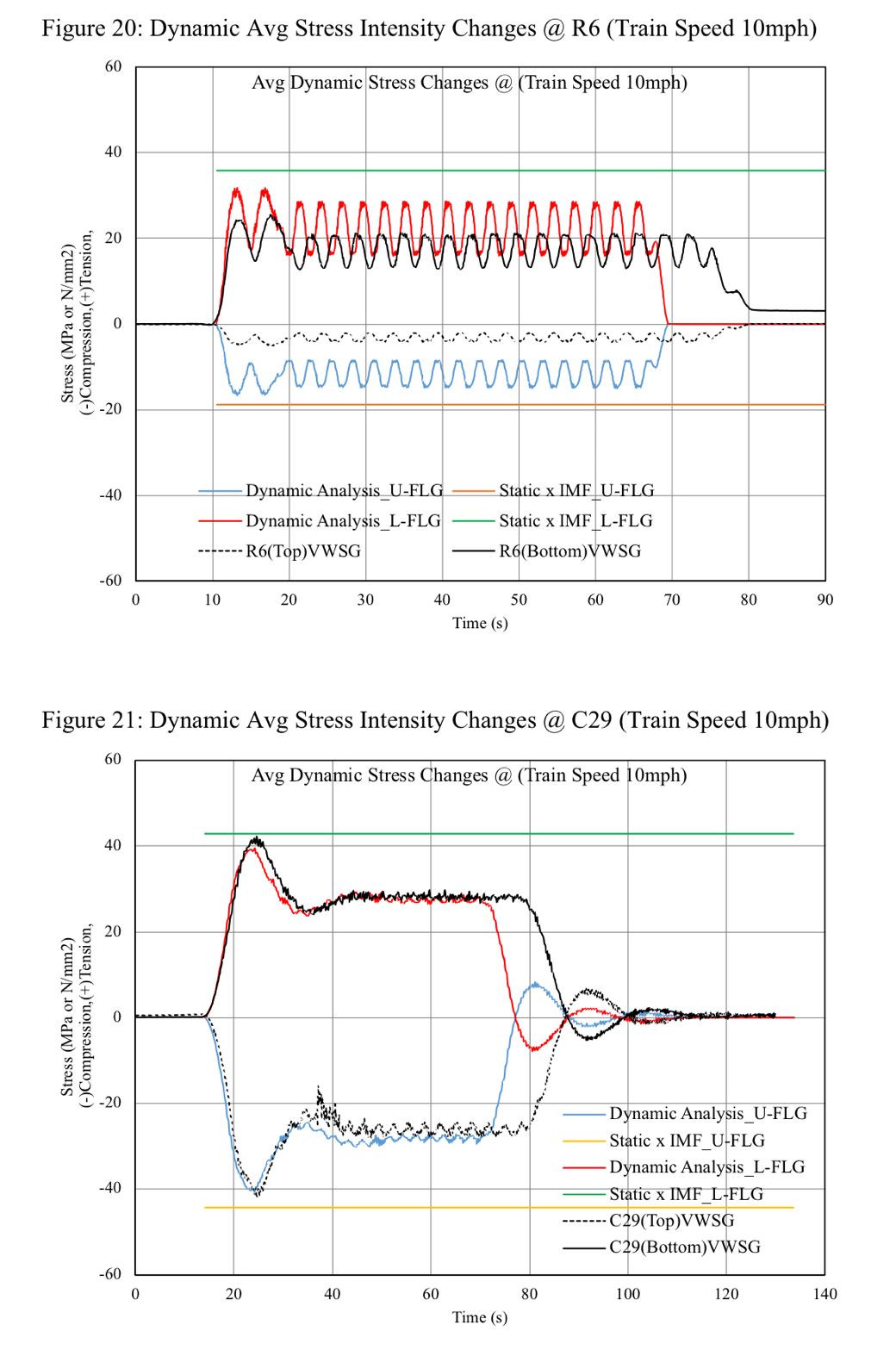

The results are compared with simulation results obtained from Midas Civil Software.

hashtag#GeoLabMyanmar, hashtag#CampbellScientific, hashtag#Datalogger, hashtag#DynamicDataLogger, hashtag#Geokon, hashtag#StrainGauge, hashtag#MidasCivil, hashtag#BridgeLoadTest, hashtag#DynamicLoadTest,
hashtag#VibratingWire

hashtag#CampbellSciOnLocation

Aung Htet

Civil & Geotechnical Engineer
