Pile Static Load Test

In order to meet the construction industry’s demand for an accurate and cost-effective method to assess the quality of foundation and structure. Foundation section provides foundation services for all kind of construction through the country using state-of-the-art, high-tech techniques.

Common Types of Pile Static Load Tests are : –

 Inverted Beam System & Kentledge System

Two Types of Static Load Test

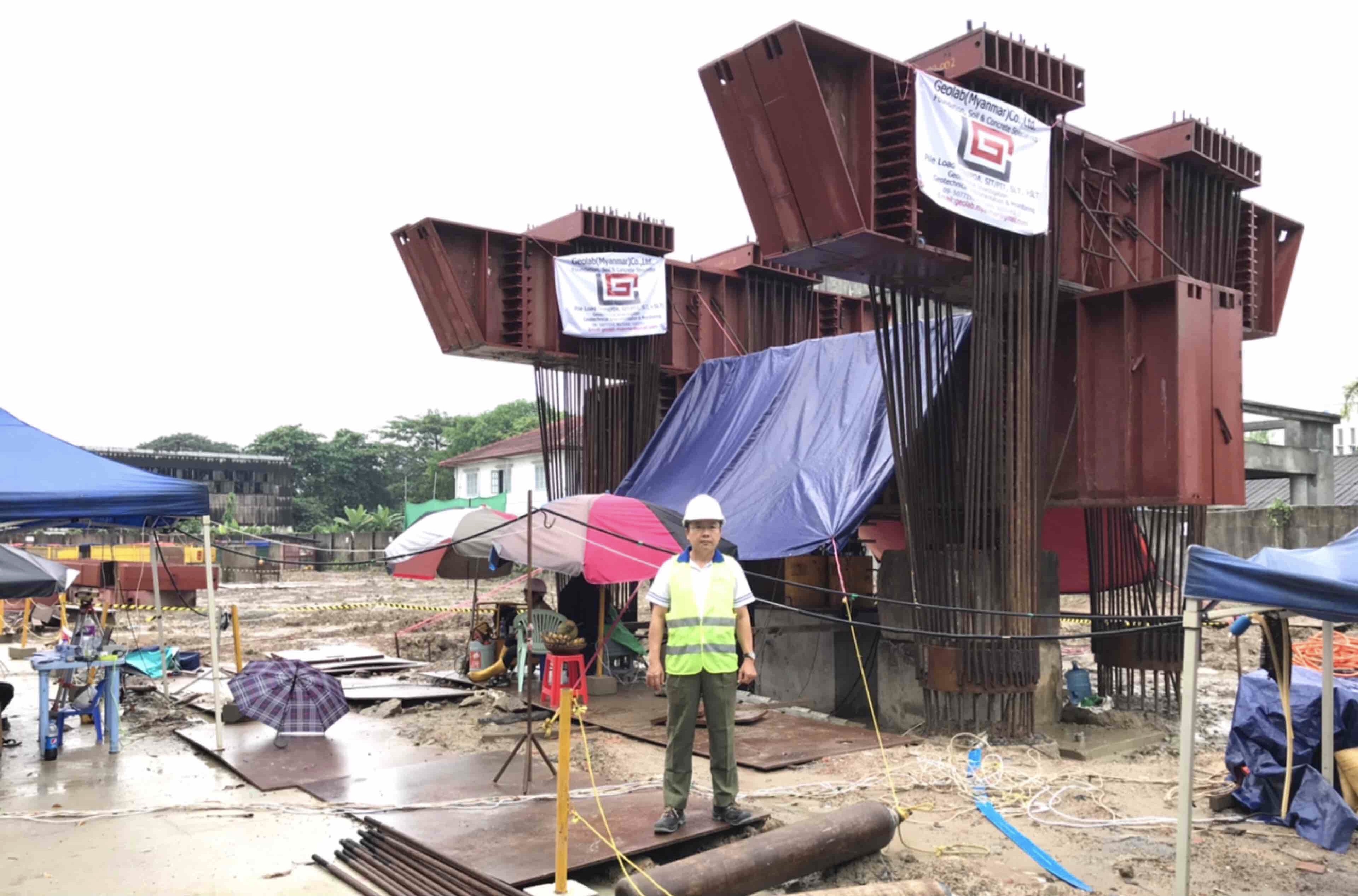

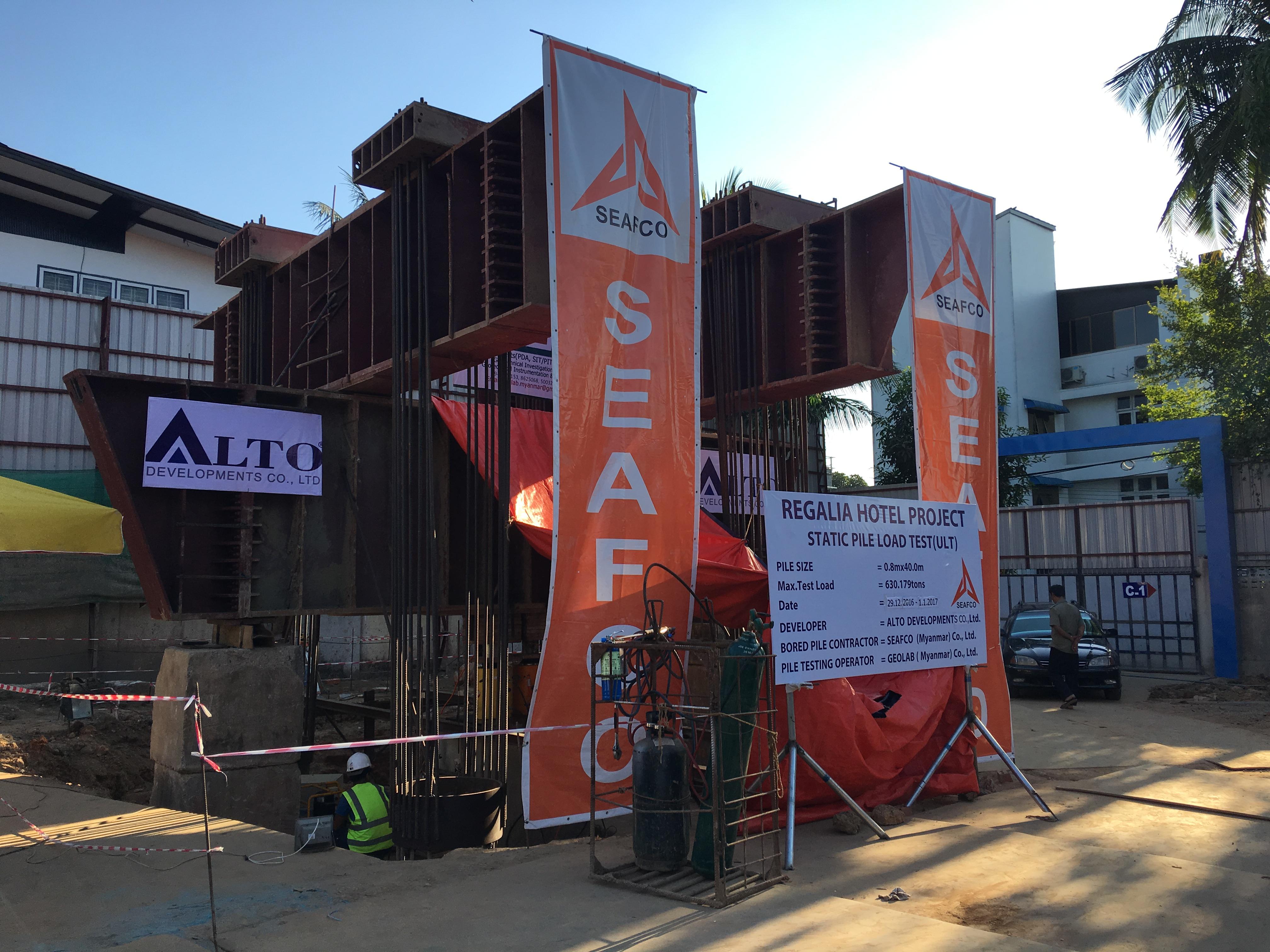

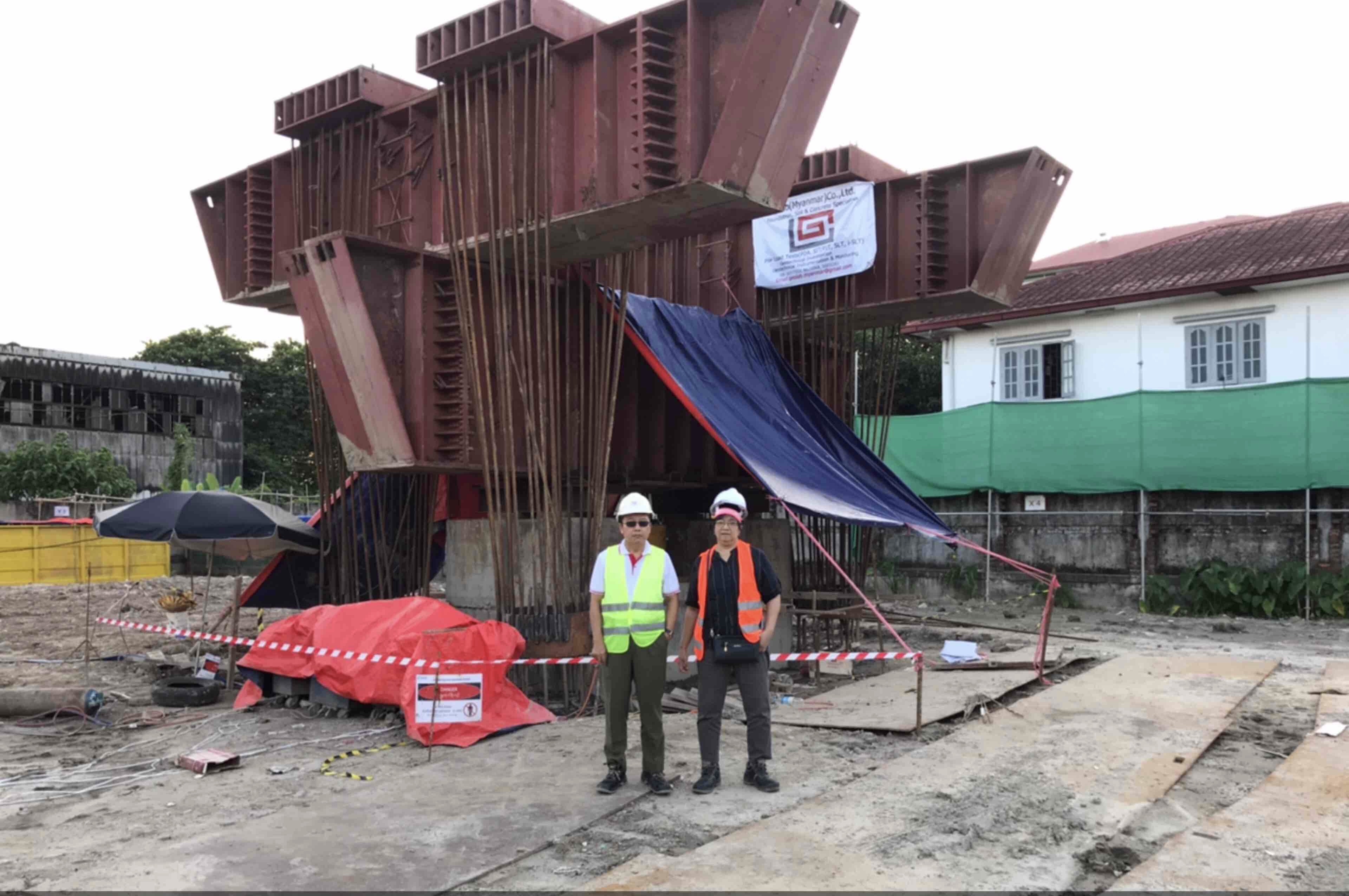

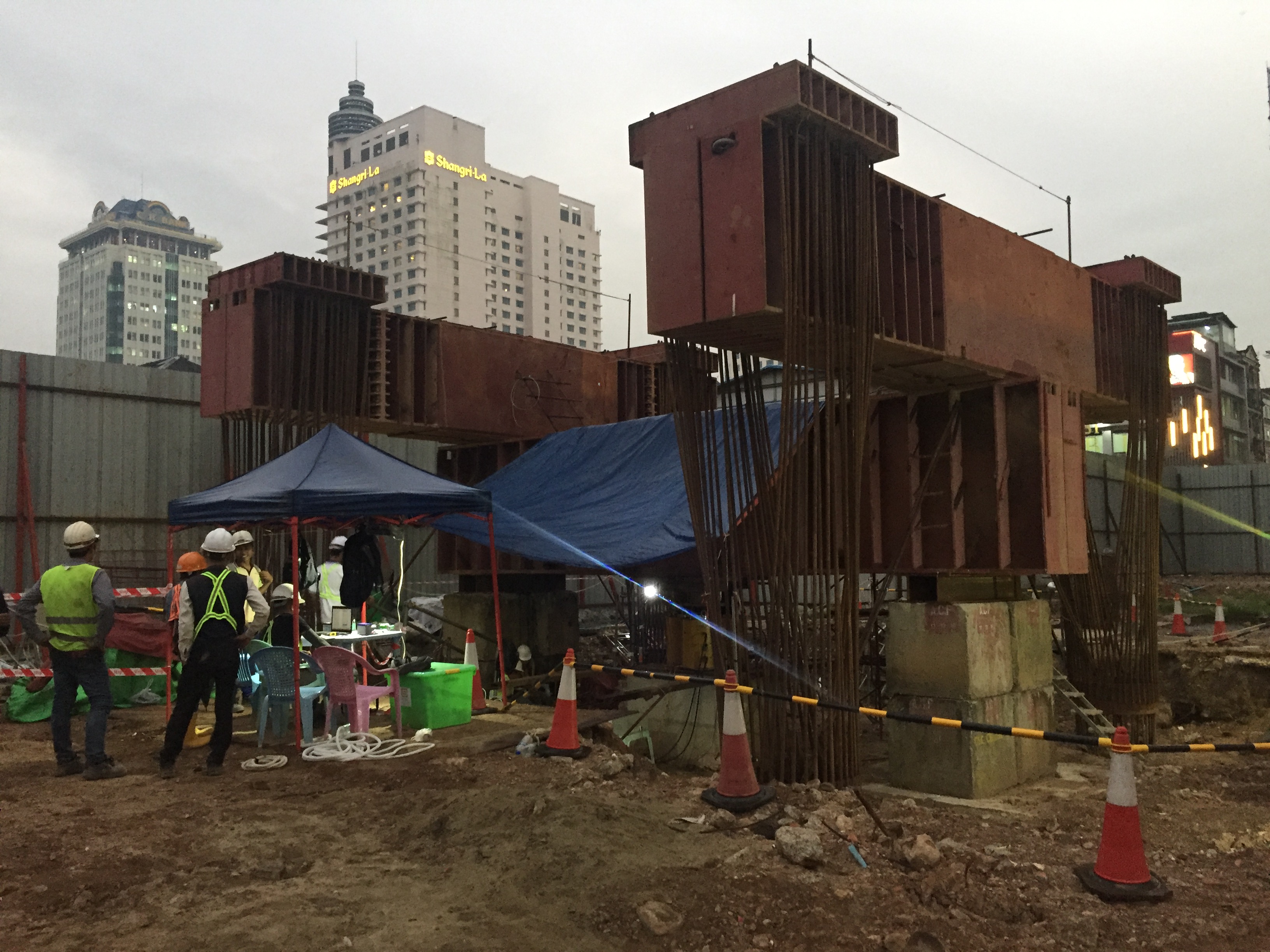

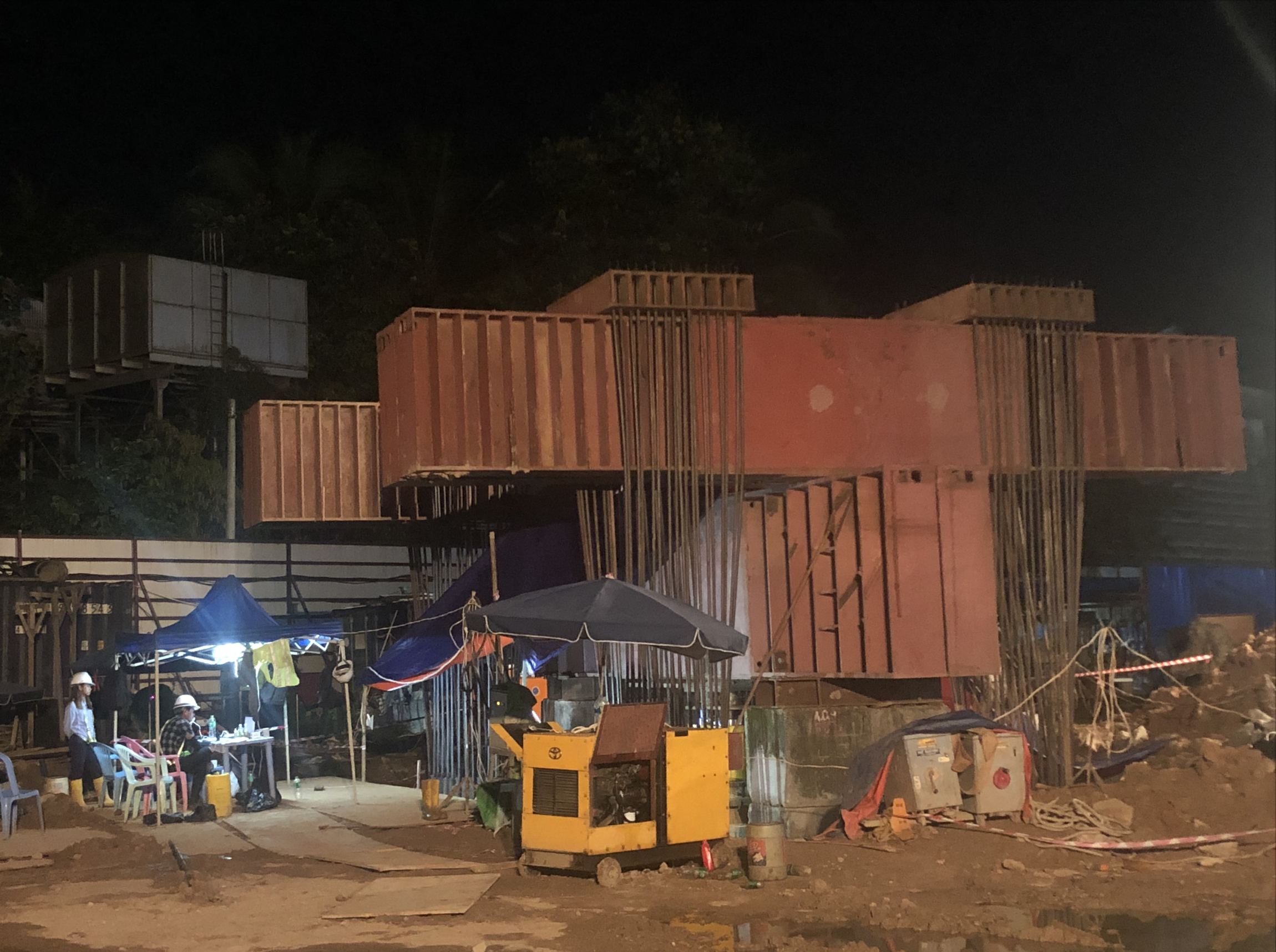

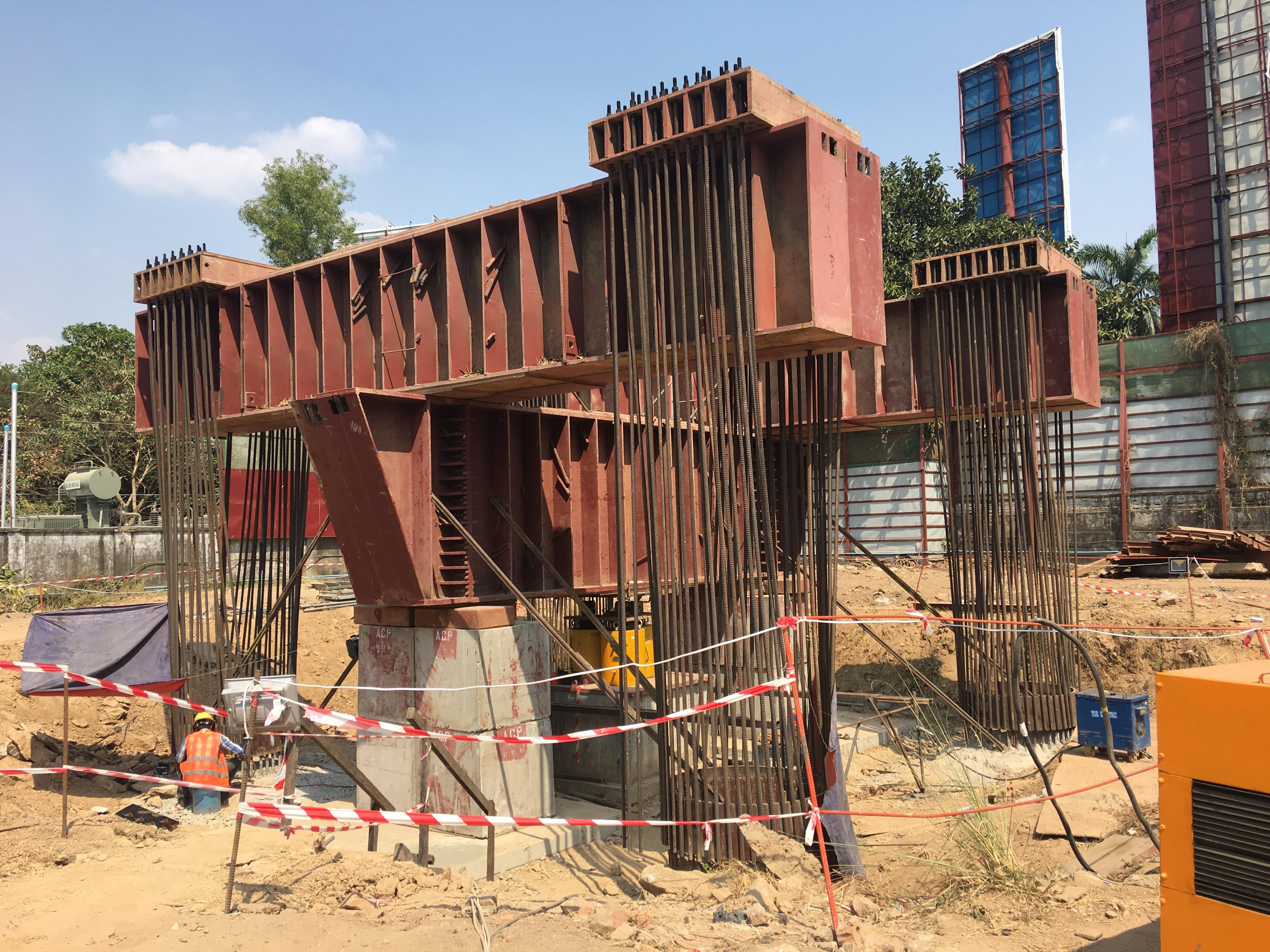

Inverted Beam System

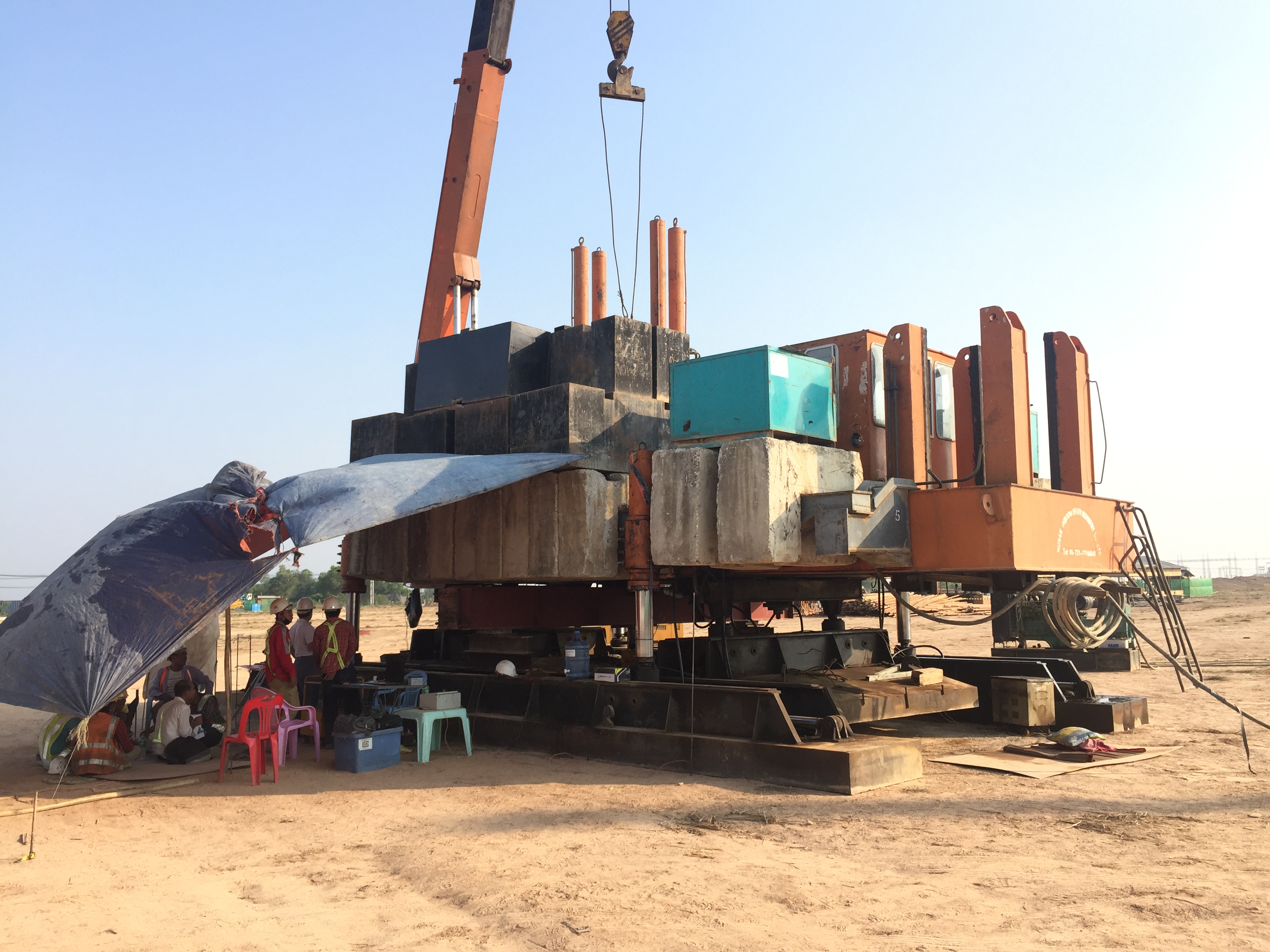

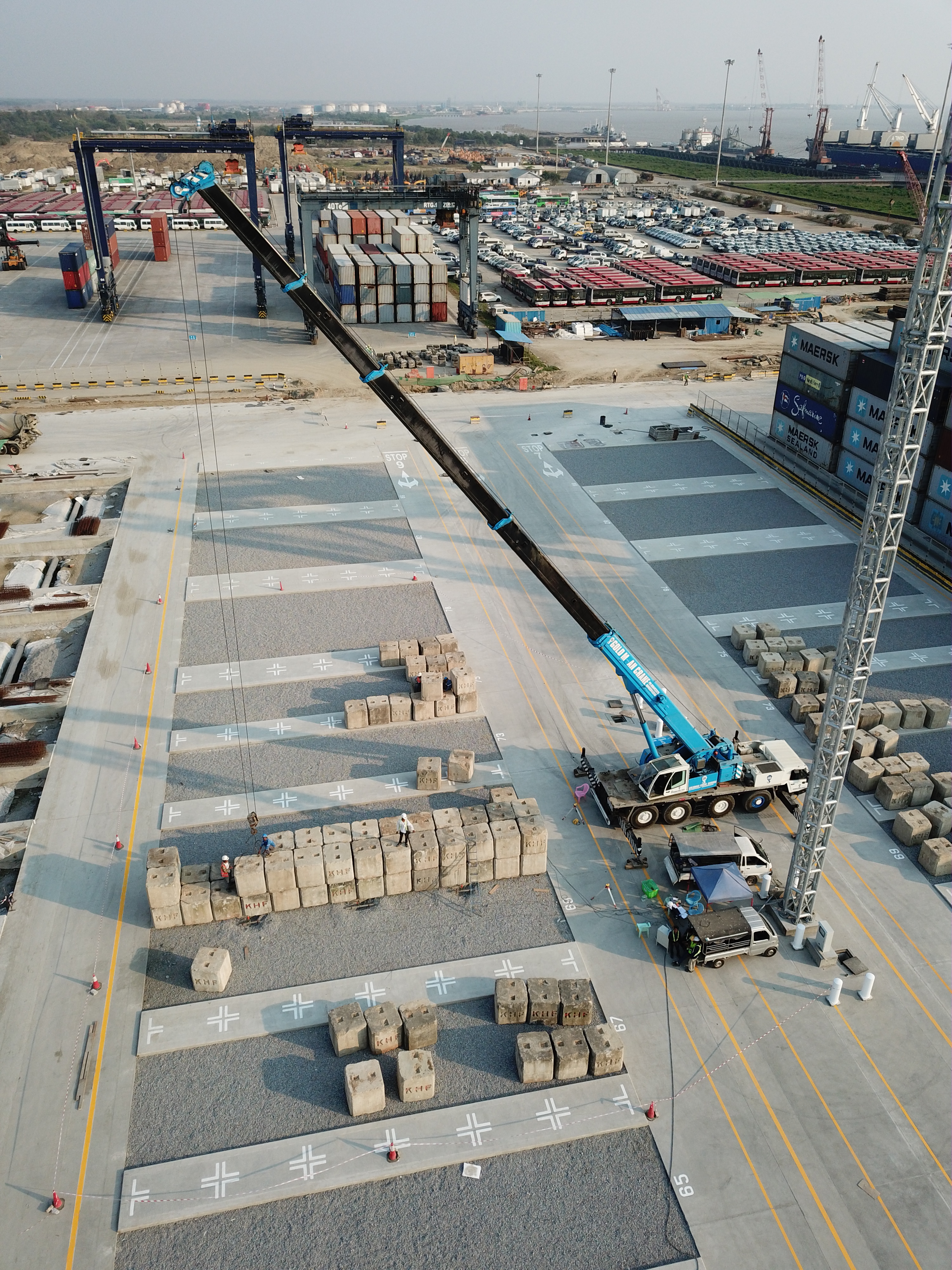

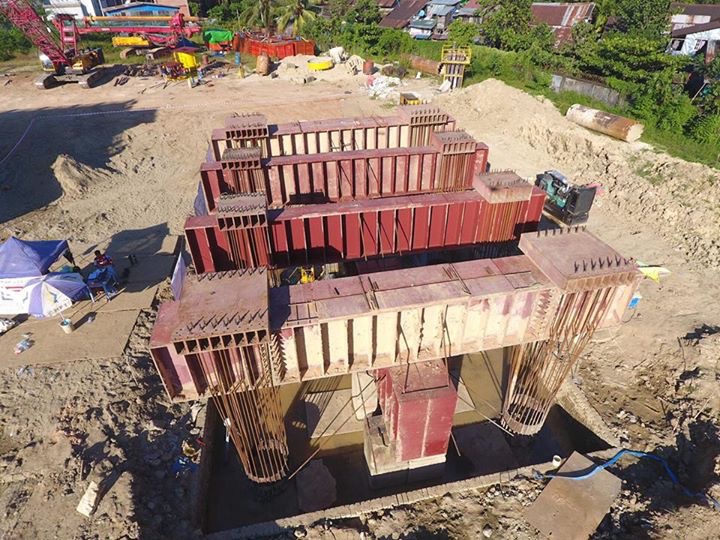

Kentledge System

Digital Data Aquicisition System

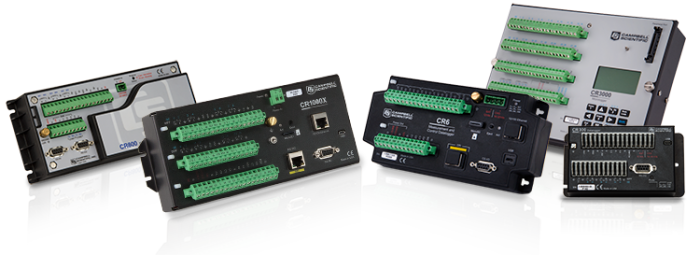

Campbell Scientific dataloggers are at the center of our rugged, reliable data acquisition systems.

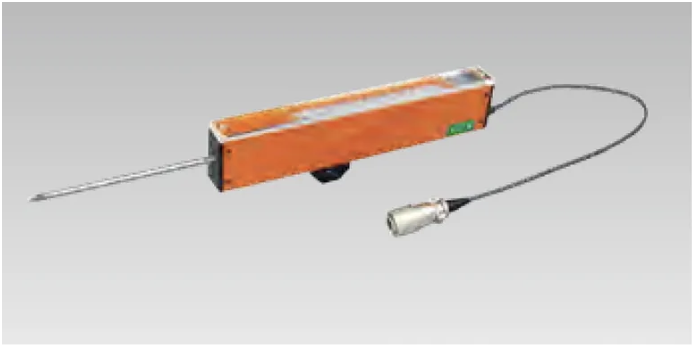

Displacemnet Transducers

TML SDP-C displacement transducer is a general-purpose, strain gauge type transducer. Designed with a strain-generating cantilever, it is able to make stable measurement while maintaining the high sensitivity to minuscule displacements.

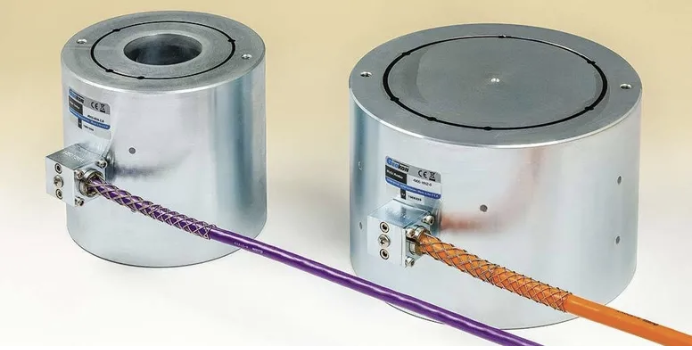

VW Load Cells

Geokon Model 4900 Vibrating Wire Load Cell consists of a cylinder of high-strength steel with 3, 4 or 6 vibrating wire strain gages located around the circumference of the cell. Loads applied to the cell are measured by the vibrating wire strain gages. The effects of uneven and eccentric loading are minimized by averaging the output of all 3, 4 or 6 individual readings.

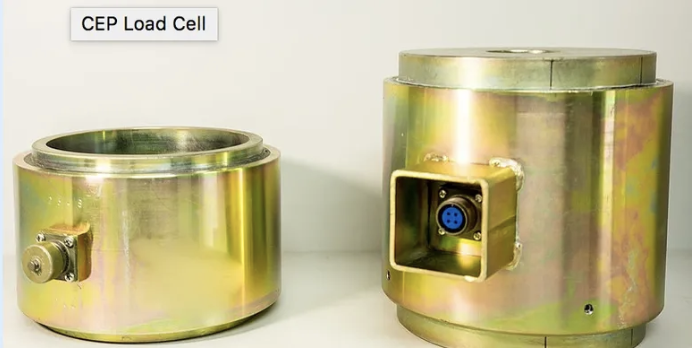

RW Load Cells

CEP resistance strain gauge load cells (RSGLC) are compact sensors for measuring loads in tie backs, foundation anchors, struts, rock bolts, tunnel supports and loading pile tests.

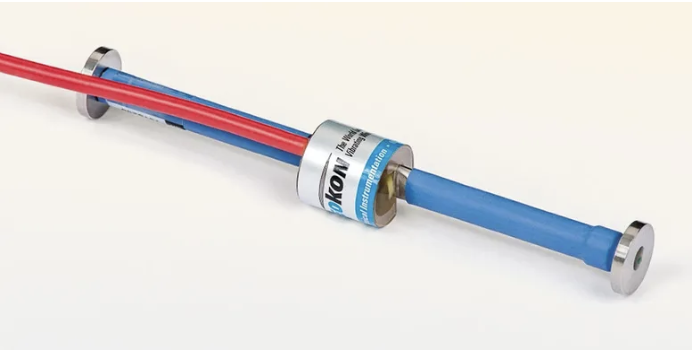

VW Strain Gauges

Geokon vibrating wire embedment strain gages are designed for direct embedment in concrete. This can be accomplished by attaching the gage to rebar or tensioning cables and then casting the gage into a concrete briquette which is subsequently cast into the structure, or grouting the gage into boreholes in the concrete.

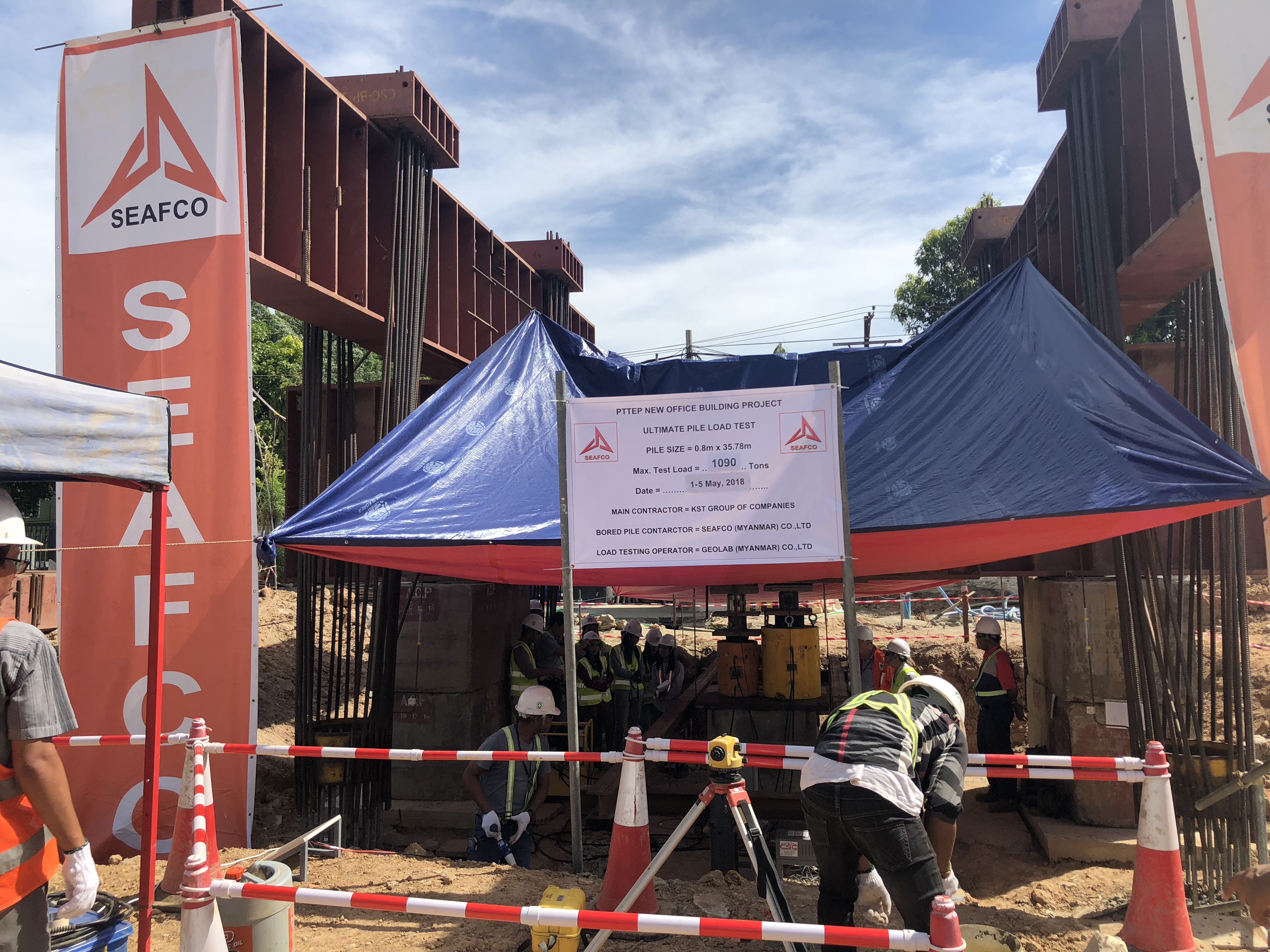

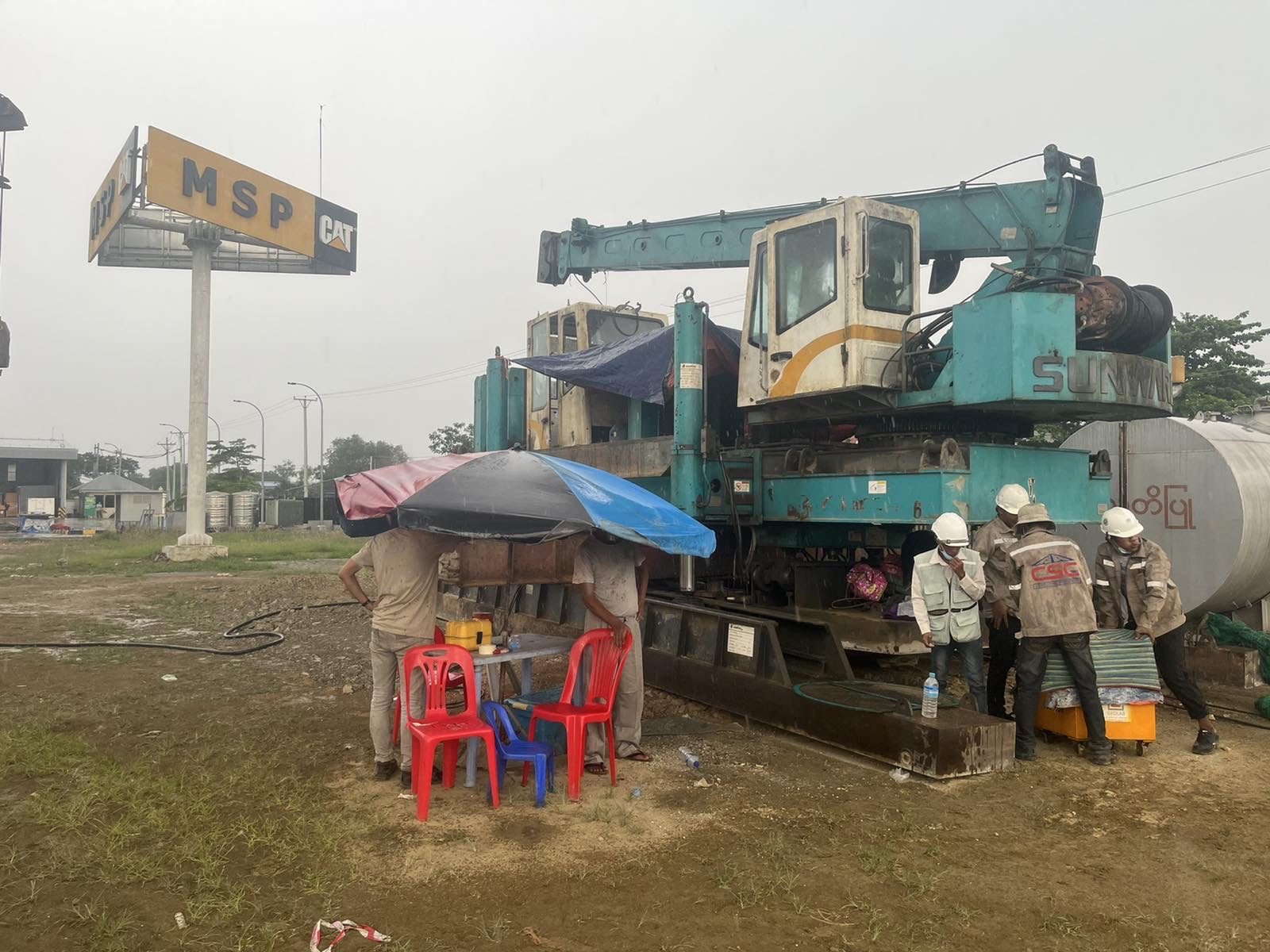

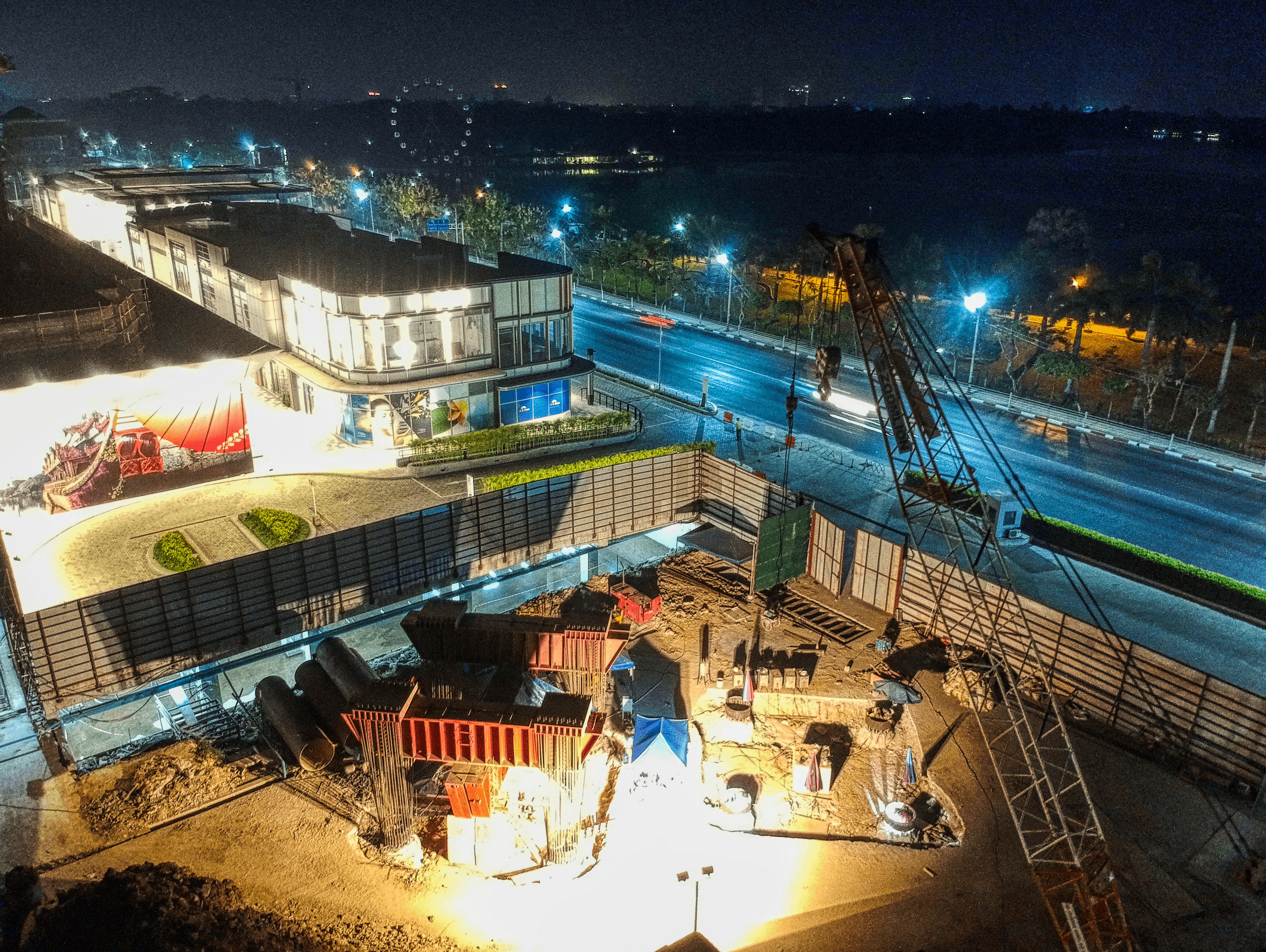

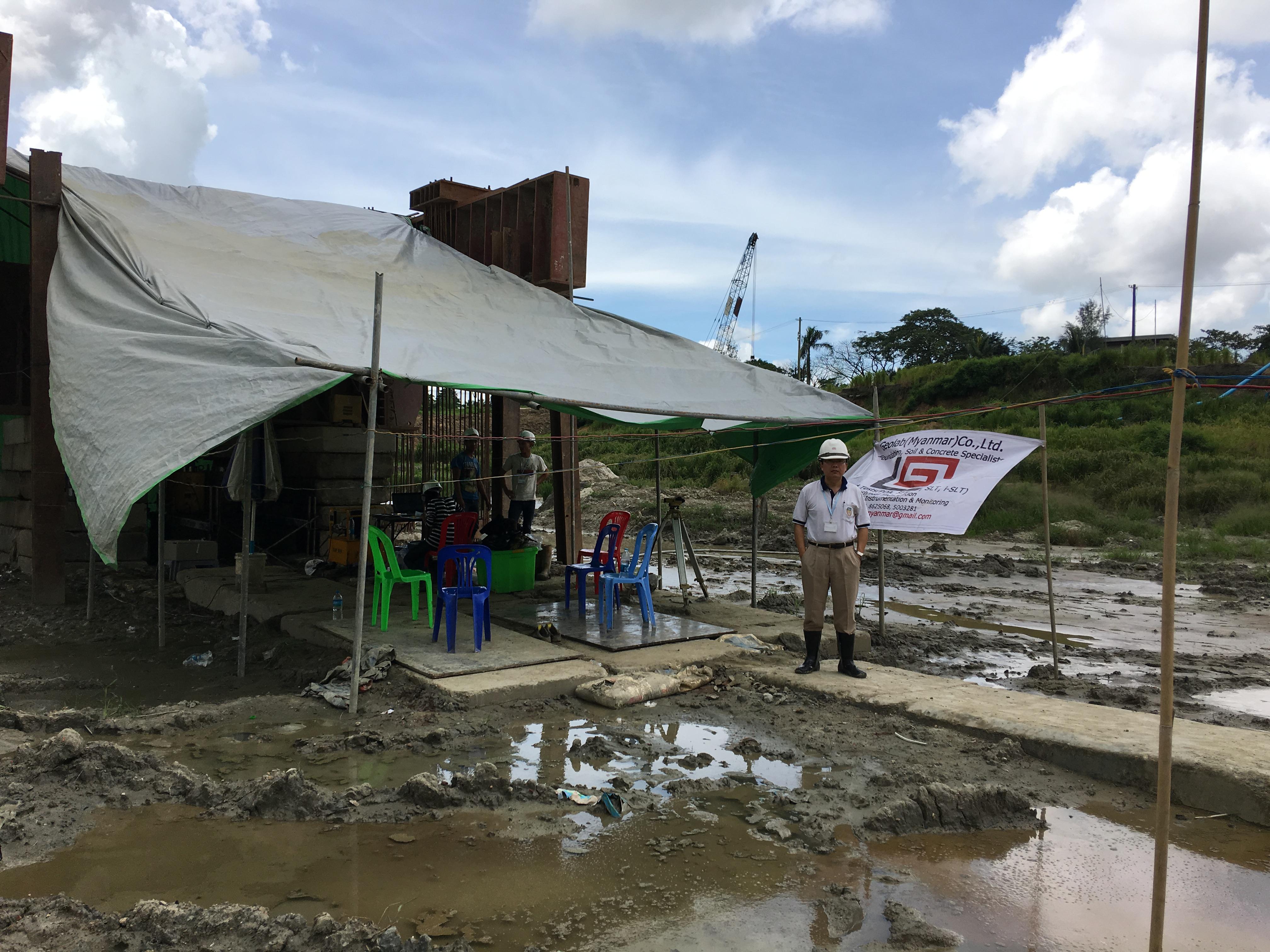

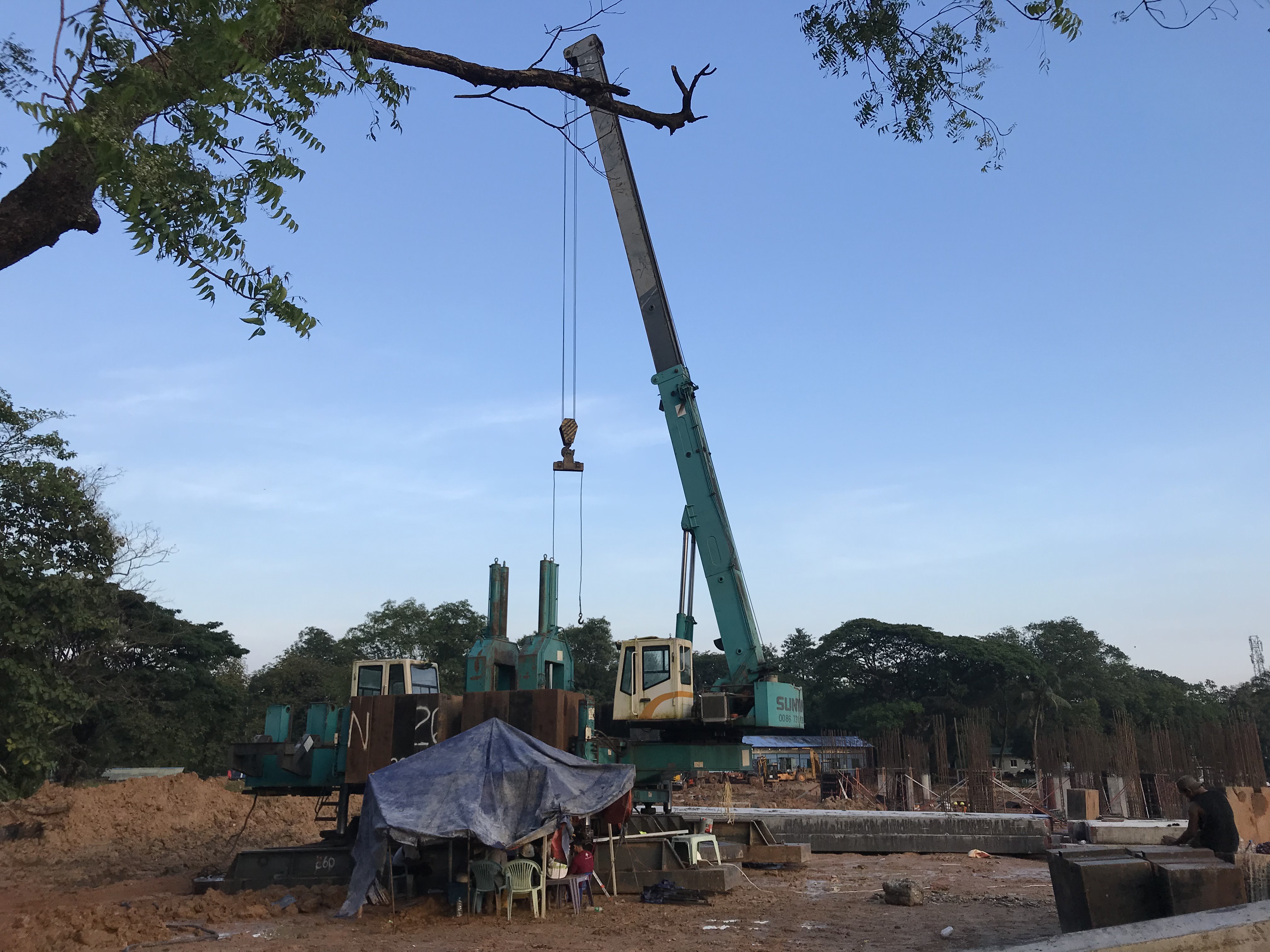

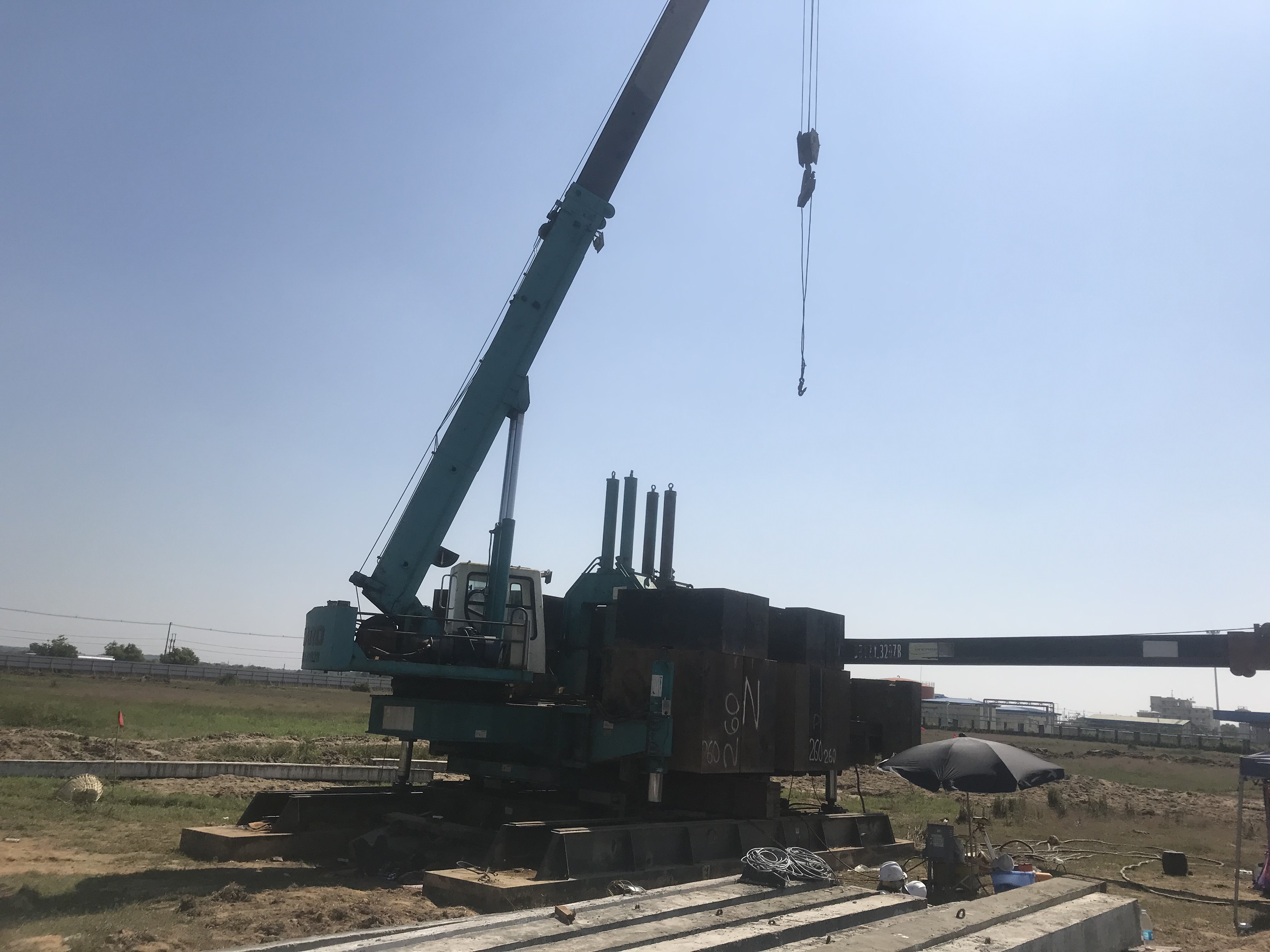

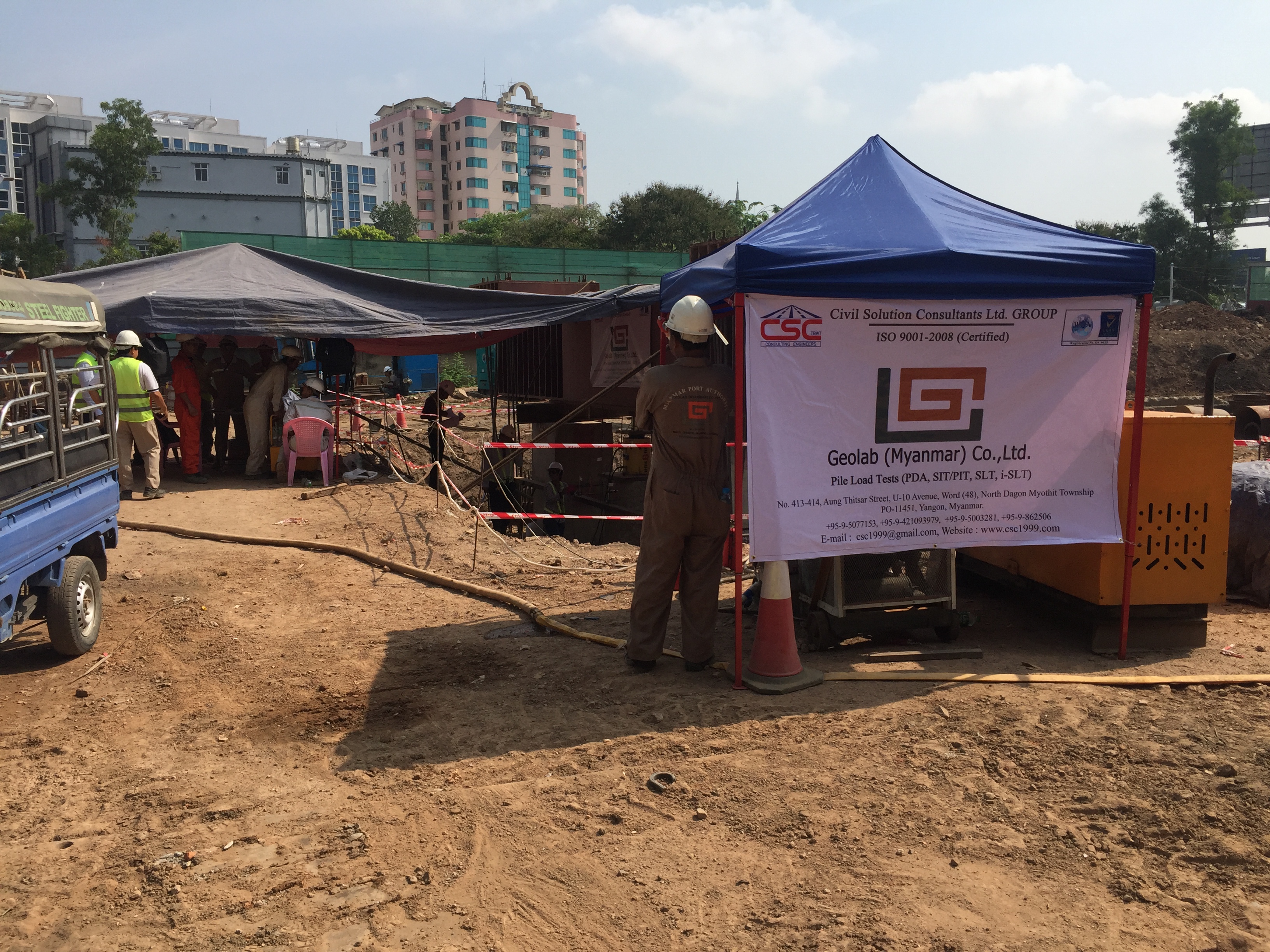

Project Gallery
